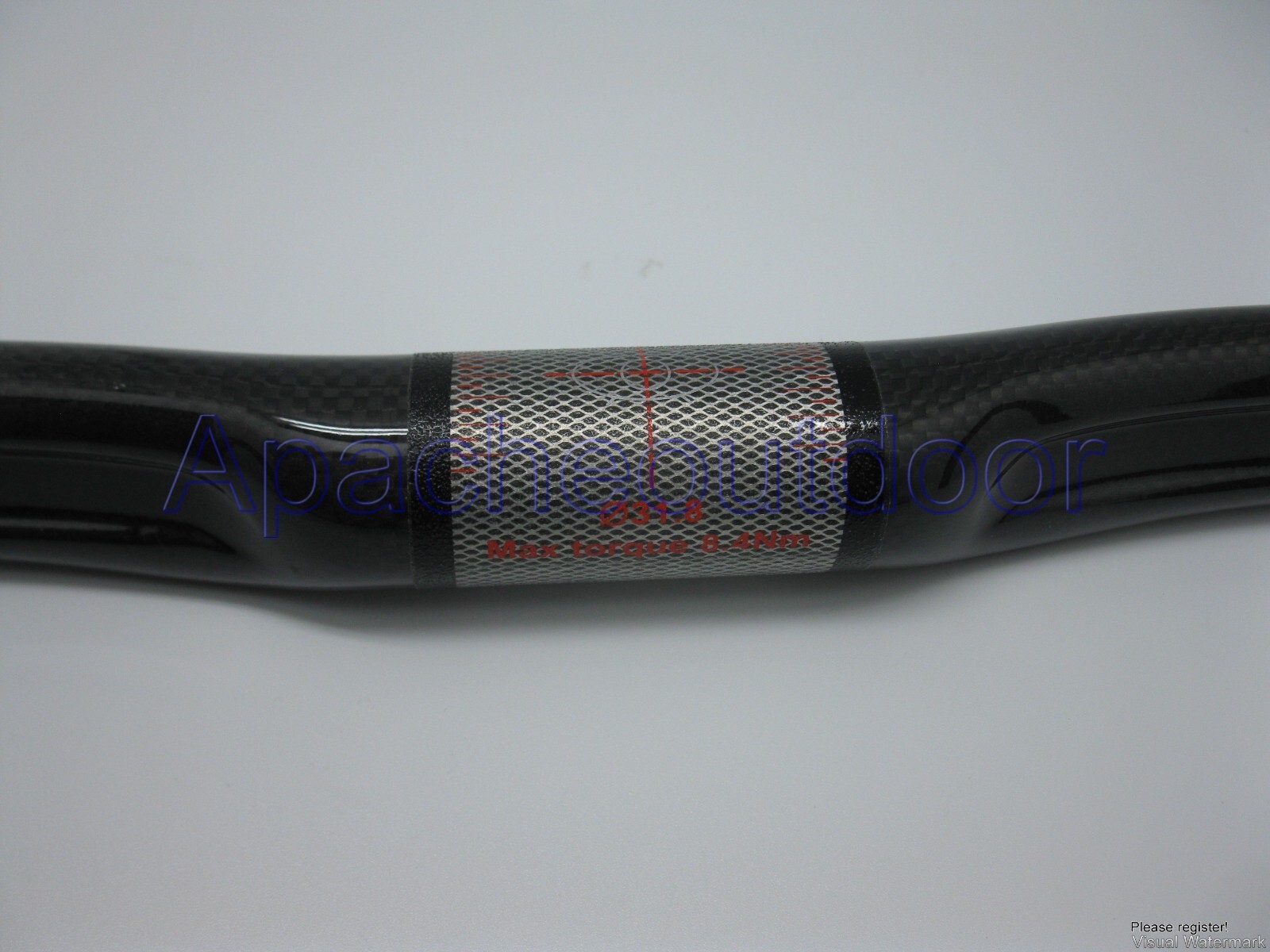

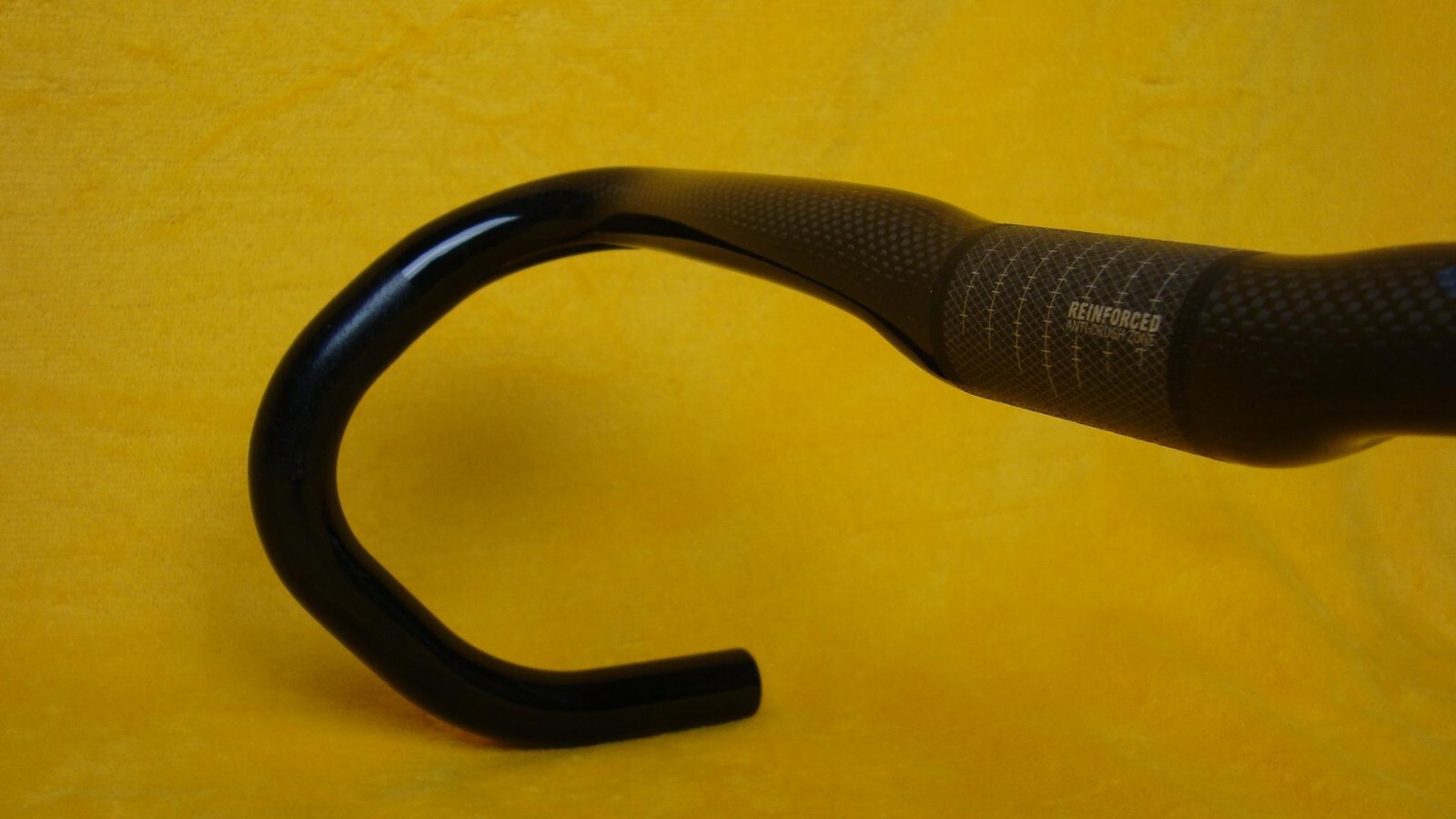

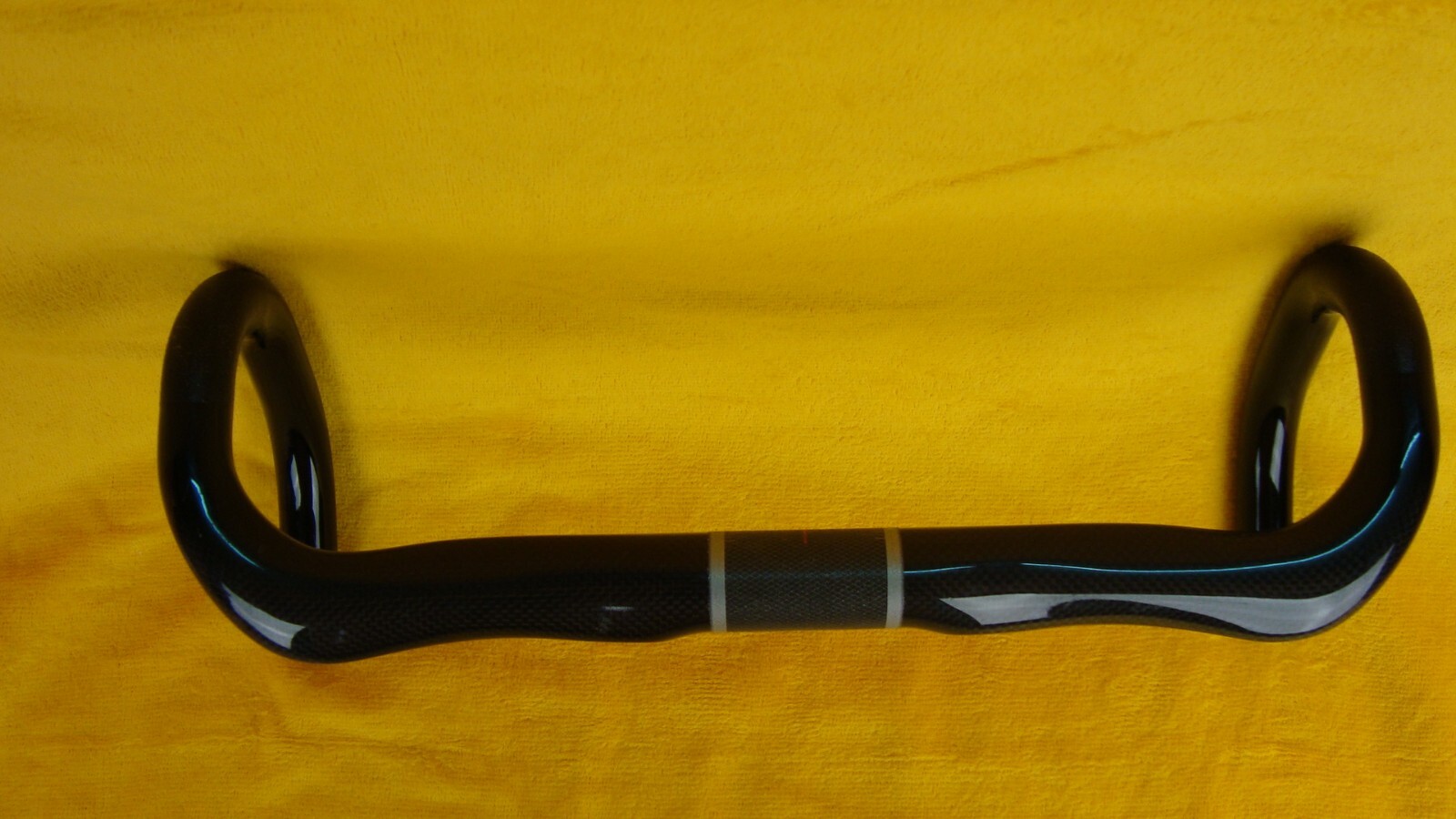

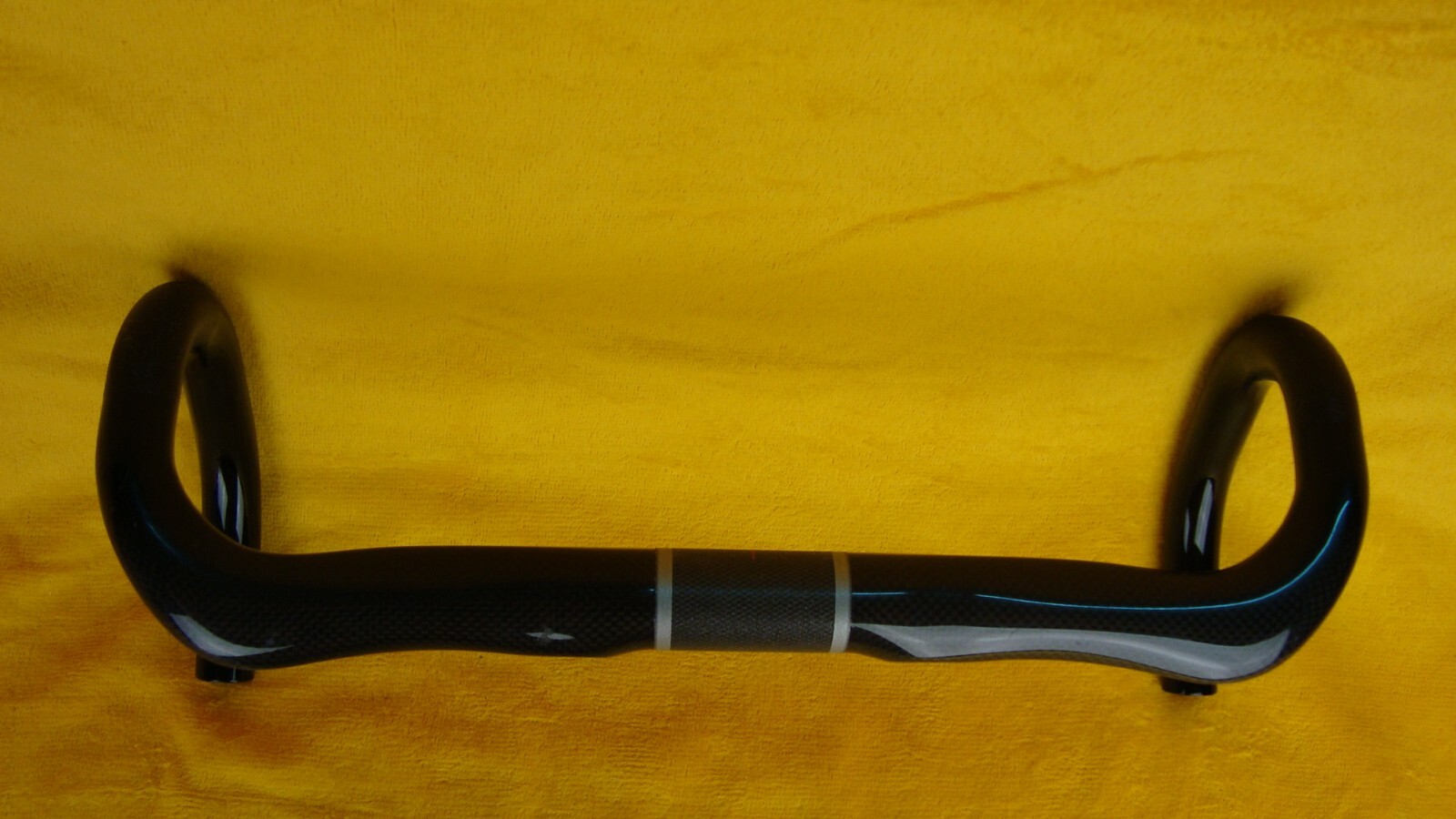

Road Bar Bike Full Carbon Handlebar 31.8mm 225g 3K woven AHB04 440mm/460mm USA
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Brand | Unbranded |
| Model | AHB04 |
| Compatible Bike Type | Road Bike |
| Material | Carbon |
| Set Includes | Handlebar |
| Item Length | 440 mm |
| For Bike Type | Road Bike |
| Part Type | Handlebars |

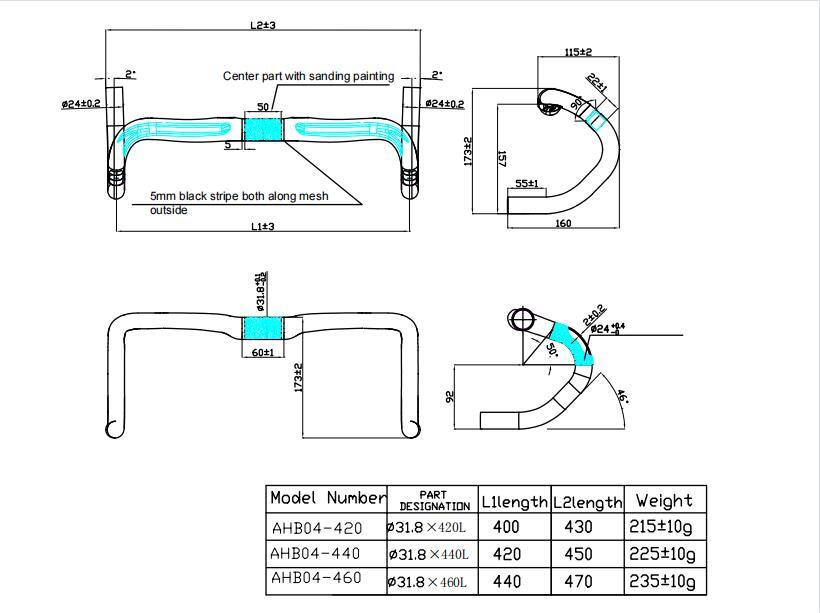

Road Bar Bike Full Carbon Handlebar 31.8mm 225g 3K woven AHB04 440mm/460mm ItemModelFinished Weight (g)Specification & physical property standardRemarkCenter Part(mm)Grip(mm)Single side strength(kgf)center part clamping force(Nm)Grip part clamping force (Nm)Double side Anti-bending strength(kgf) Road BarAHB-04-440225±1031.8+0.1/-0.324±0.2/8.4N.m/≧400kgfEPS Mandrel process ItemModelFinished Weight (g)Specification & physical property standardRemarkCenter Part(mm)Grip(mm)Single side strength(kgf)center part clamping force(Nm)Grip part clamping force (Nm)Double side Anti-bending strength(kgf) Road BarAHB-04-460235±1031.8+0.1/-0.324±0.2/8.4N.m/≧400kgfEPS Mandrel process Model: AHB-04 Material: Full Carbon with Toray 700/M30S Bar bore: Ф31.8 Width: 440(side to side), 460(side to side) Weight: 225+/-10grams, 235+/-10grams Outlook: 3K Weave Product description,High quality carbon material delivers substantial road vibration dampening. The full carbon handlebar is used by 3K carbon weave on outside surface, With center clamp, to wrap Ti mesh in molding and add sanding printing for friction resistibility after molding.The light weight full carbon handlebar is made by accurate EPS mandrel with vacuum process to add stiffness in impact strength stronger.All of testing criterion is followed CEN test standard (CEN14781:2005 4.7.6.2), (CEN14781:2005 4.7.6.4),( CEN14781:2005 4.7.7), and CPSIA standard.Lightweight, durable, and aerodynamic construction31.8MM clamp size, and Drop 157 mm.Use a 2 or 4 bolt removable face plate design. Install according to stem manufacturers torque specs, and Supports Shimano, Campagnolo, or SRAM cabling systems2 years warranty: Please contact us if you met any problem(except human destruction) during usage and we will try our best to resolve(repair or replace a new one) and make you satisfiedThe sharp edge may cause by carbon handle bar damage in riding. All of clamp with stem faceplate and brake lever clamp need to remove the sharp edges.
