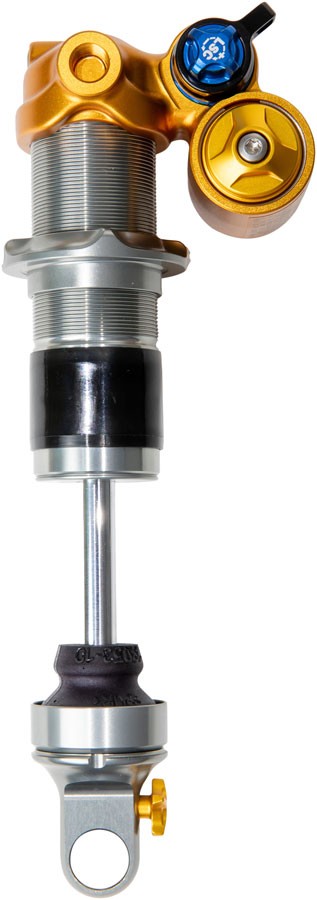

Ohlins TTX22 M.2 Coil Trunnion Shock – High-Performance DH & Trail Suspension
Specifications
| Brand | Ohlins |
| Item Width | 4.00 in |
| Eye To Eye Measurement | 225 |
| MPN | MTBM 2232 |
| Item Weight | 1.8700 |
| Model | TTX22M.2 Coil Trunnion |
| UPC | 840153624230 |
World Cup proven, specifically designed for the DH and Trail segments with better end stroke control and improved adjustment range. Trunnion mount: the linkage bolts directly to the sides of the cylinder head. Improved bottom out performance, courtesy of a newly designed bump rubber. Possible to simply adjust stroke with the three 2.5 mm spacers included in the box. External 3 level high-speed compression adjustment. External 16 click low-speed compression adjustment . External 7 click rebound adjustment. Stability mode to reduce suspension movement during less technical climbs. Suitable for the lightweight springs. Mounting hardware sold separately, end eyes are 15mm. 486gNew bump rubber, in combination with the cup it sits in, acts as a second spring, loading and releasing energy to.
