M8x230 QUILL STEM DRAW BOLT//TITANIUM Bicycle Optional 21.8mm WEDGE,19.2mm CONE
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Country/Region Of Manufacture | United States |
| Material | Titanium |
| Steerer Tube Diameter | does not apply |
| Color | Titanium |
| Part Type | stem bolt |
| MPN | Does Not Apply |
| Type | Quill |
| Stem Length | Varies |
| For Bike Type | Time Trial/Triathalon |
| Handlebar Clamp Diameter | Varies |
| Brand | Ti Cycles |

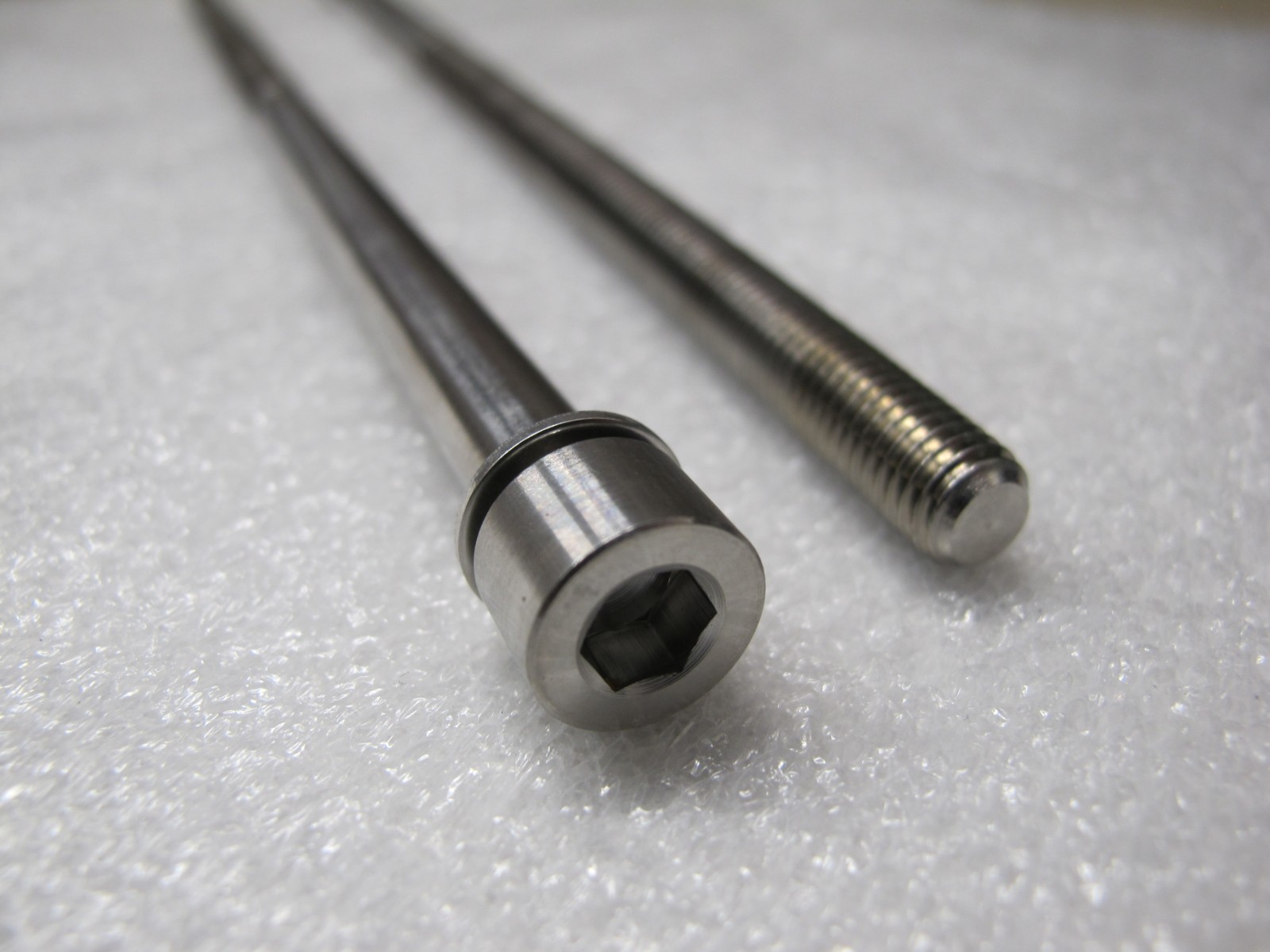

TITANIUM Quill Stem Draw Bolt6/4 Titanium. 6 mm socket heads are specifically machined to 12 mm diameter to work with all vintage and modern quill stems with M8 draw bolt. All bolts include washer. The washer is designed to fit under the head of the bolt and is made from stainless steel.BOLT SIZE: M8BOLT MATERIAL: 6/4 TITANIUM, MACHINED FINISHBOLT LENGTH: 230 mmWASHER MATERIAL: Stainless steelSOCKET HEAD: 6 mm hexSOCKET HEAD OD: 12 mmTHREAD LENGTH: 128 mmTHREAD PITCH: 1.25 coarseBOLT WEIGHT: 47.3gWEDGE WEIGHT: 13gWEDGE MATERIAL: ALUMINUM, SAND BLASTED FINISH(OPTIONAL) WEDGE SIZE: 21.8 mm for 1" forks(OPTIONAL) CONE SIZE: 19.2 mm for 1" forks ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
