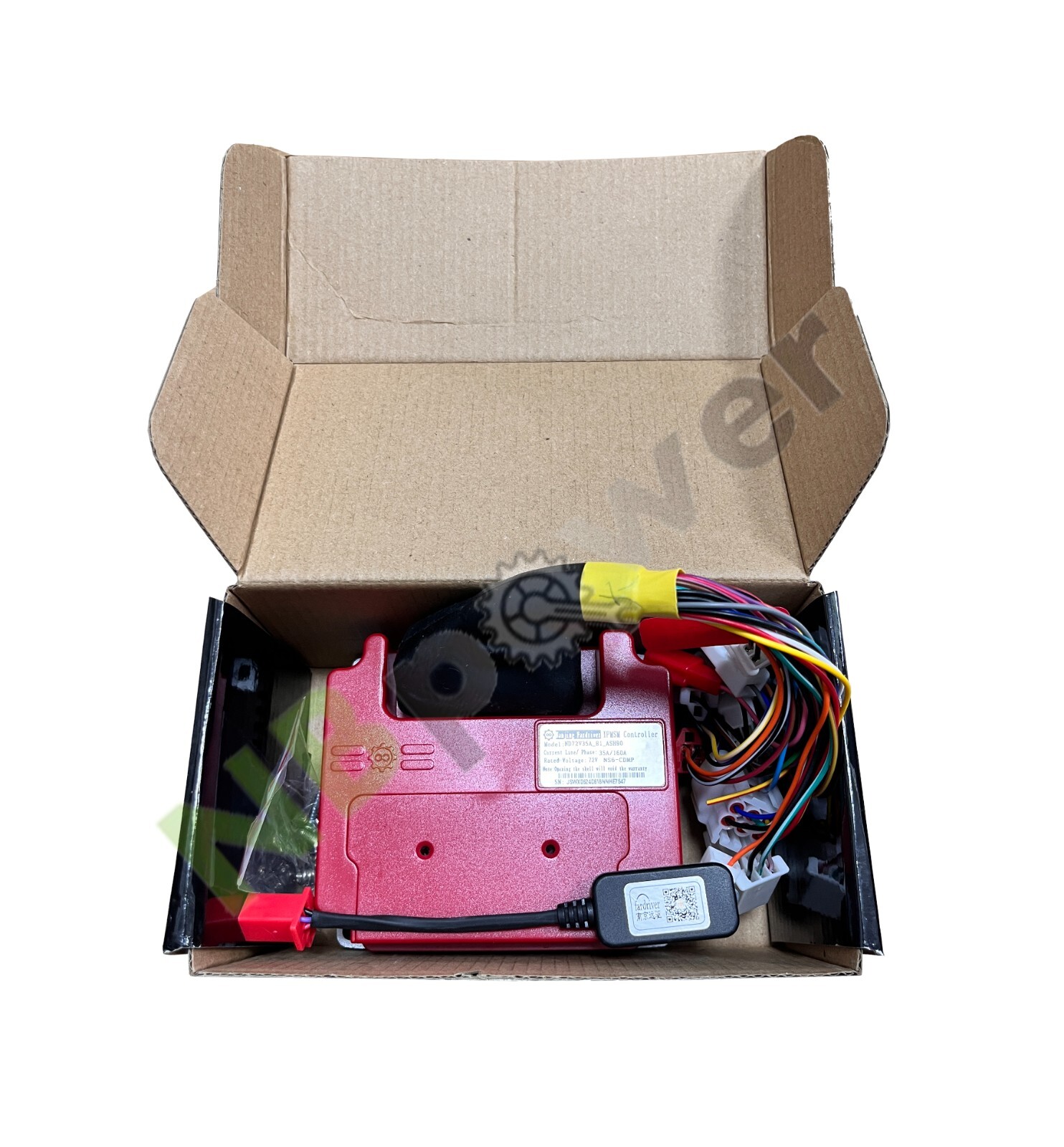

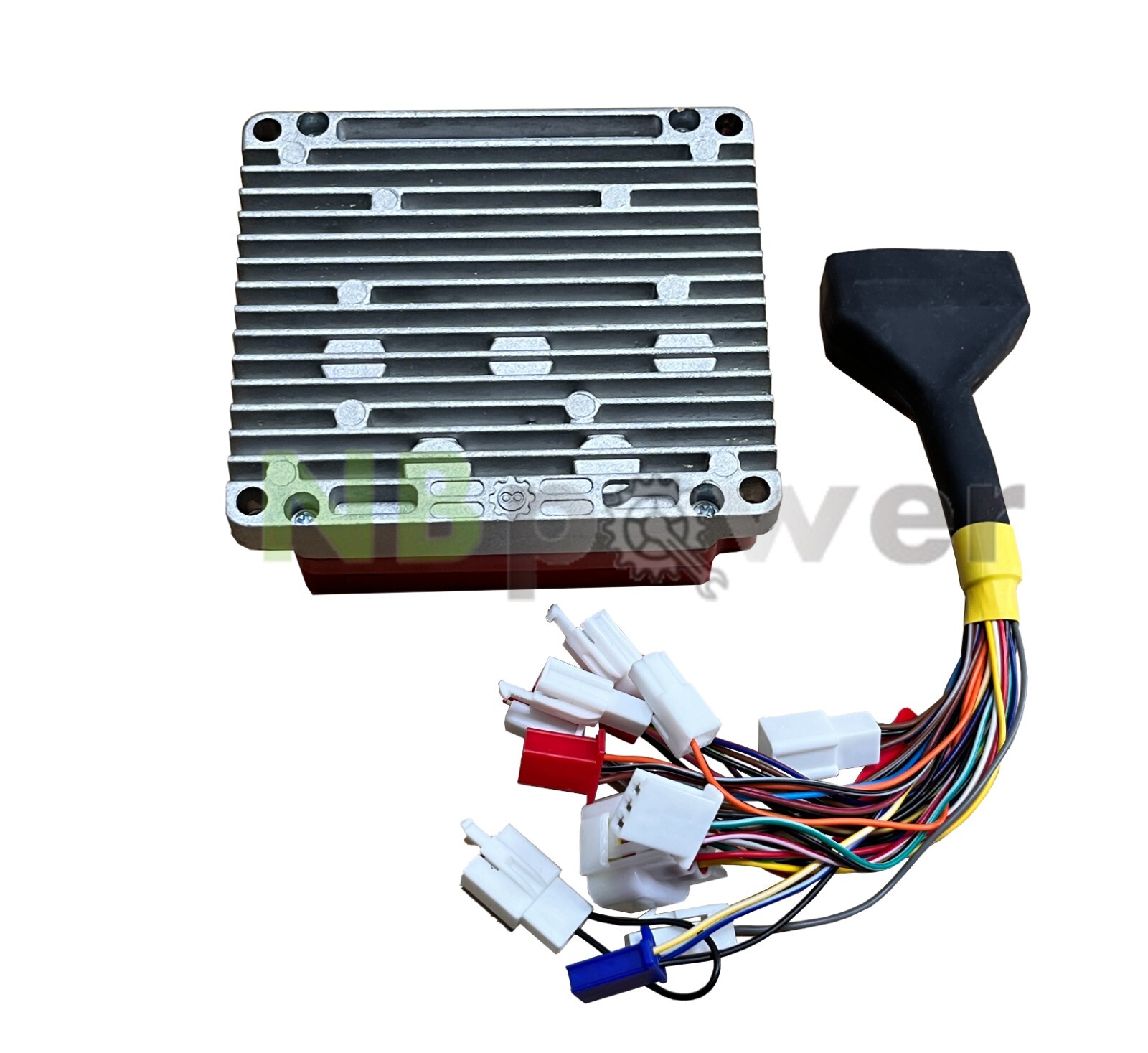

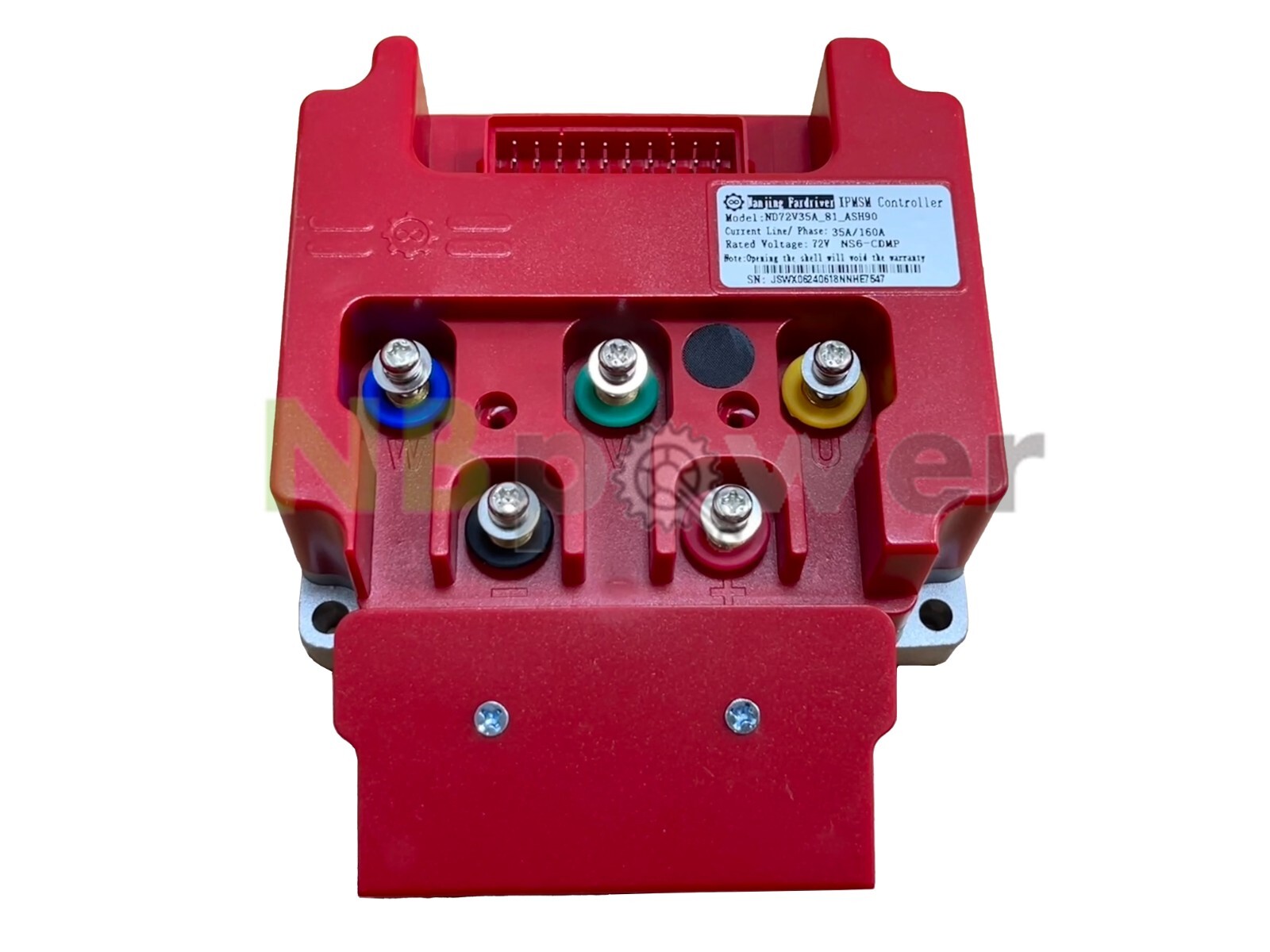

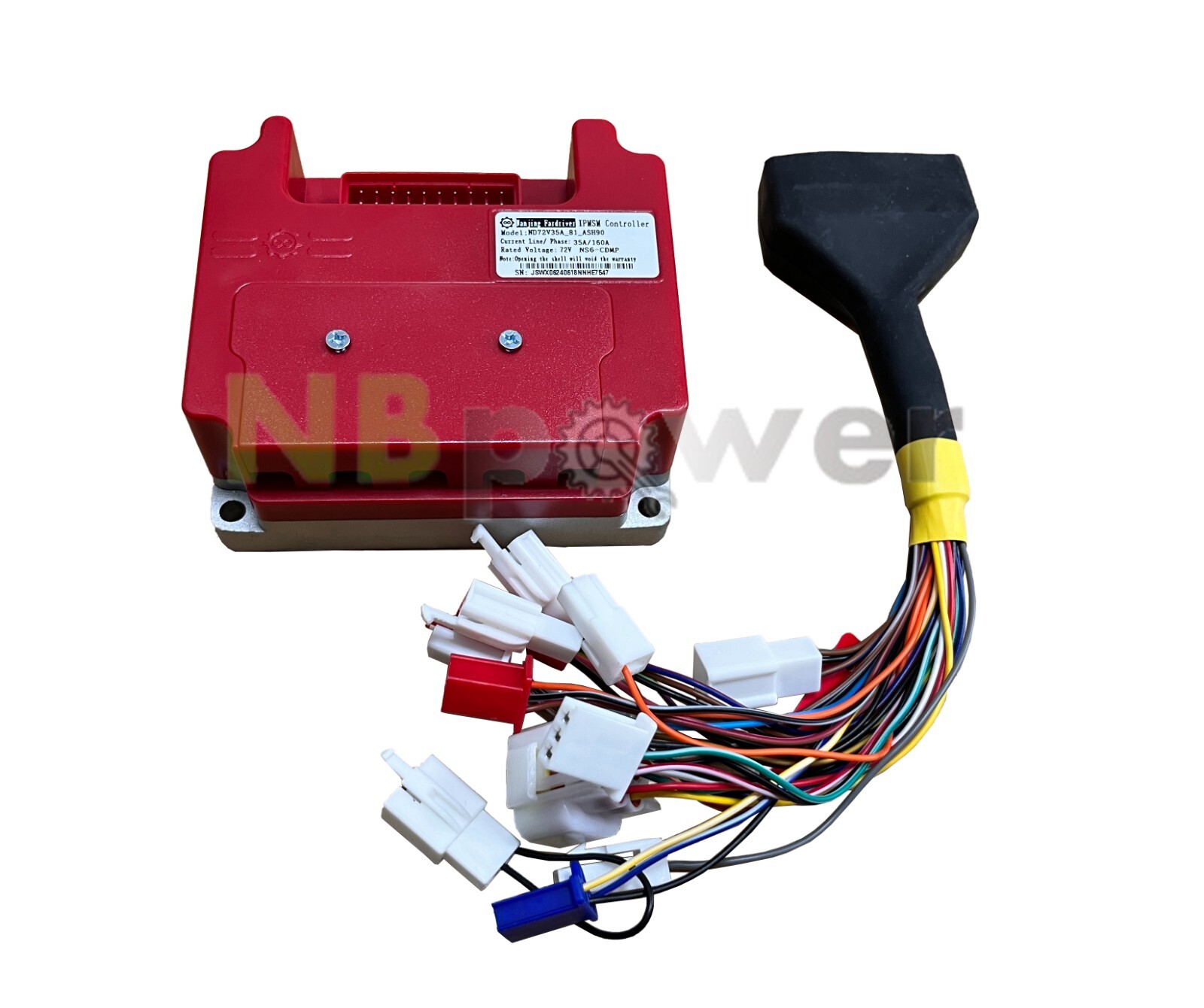

Fardriver ND7235 72V 35A/160A Programmable controller with bluetooth adapter
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | fardriver |
| Voltage | 72V |
| Color | Red |
| Item Height | 47mm |
| Compatible Bike Type | Universal |
| Item Length | 116 mm |
| Country/Region Of Manufacture | China |
| Battery Type | Lithium Ion (Li-Ion) |
| Item Width | 103mm |
| Item Weight | 1.5lb |
| Part Type | Controller |

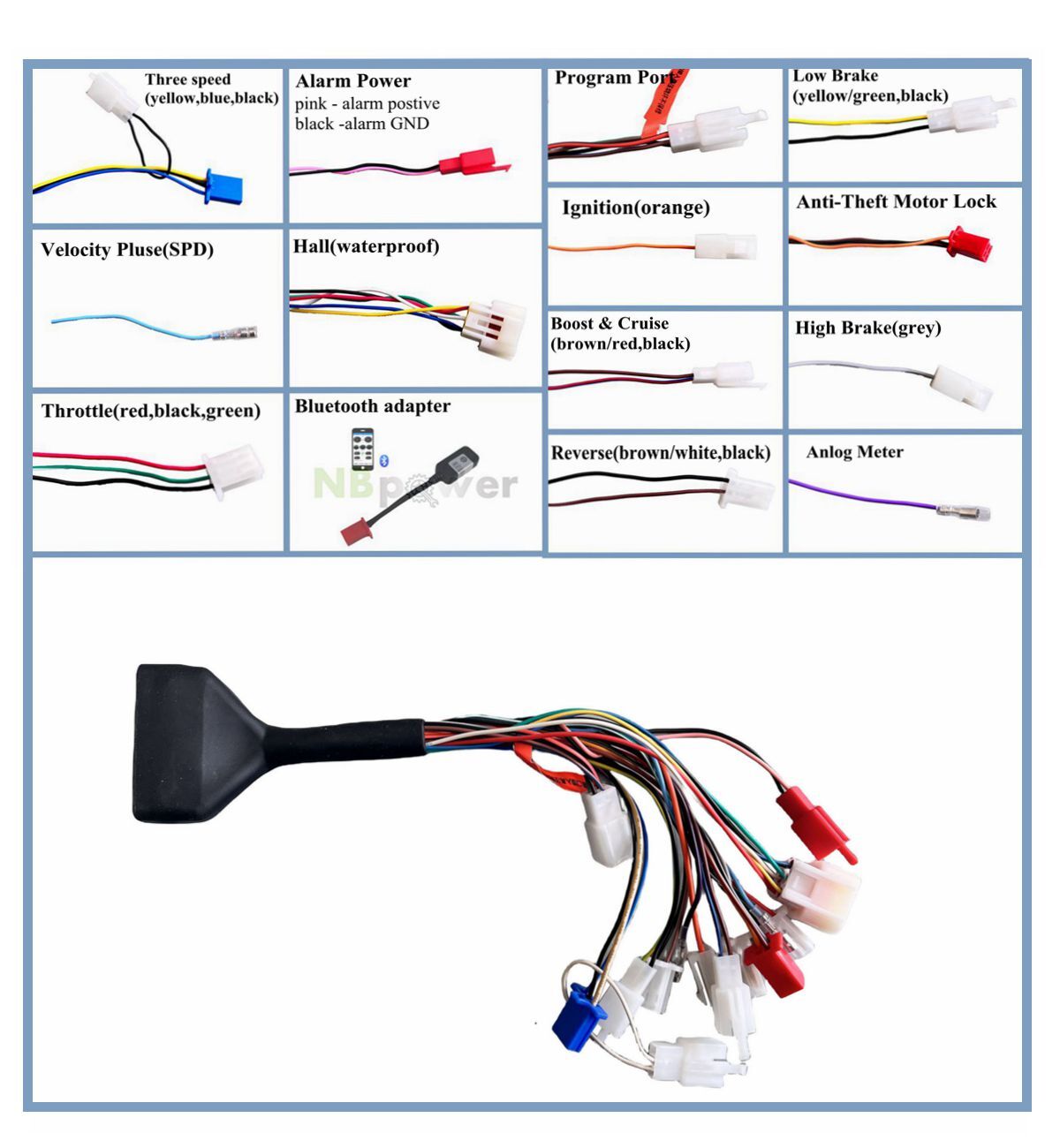

FarDriver ND7235 72V 35A BLDC Sine Wave ControllerThe default function for Fardriver controller :Hall plug, Throttle signal (0-5V), Ignition, Speed Signal Meter, High Brake(12v), Three Speed, Temp Sensor, Reverse, Low Brake(0v),Flux Weakening,Anti-Theft,Boost,Cruise,Self Learning,Program Port. One Kit Contains1 pcs x ND7235 Controller(Red with Bluetooth adapter)Key FeaturesThe ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors.It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardwarearchitecture and software implementation are perfectly matched and refined.General SPECNanjing Fardriver Controller1Model: ND72352Working Communication: Hall Sensor3 Available Rated Battery Voltage: 48V/60V/72V4 Peak Battery Voltage: 88V5Available Motor Power: 1000w6Defaut Throttle Working Voltage: 0V - 5V7Peak DC Current: 35A 8Peak Phase Current: 160A9Weight:0.75kgs10Instaliing Size: 116mm * 103mm * 47mm11Controller Design: Sine Wave BLDC12Case Material: Aluminum13 SupportProgrammable: PC & Phone14Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV
