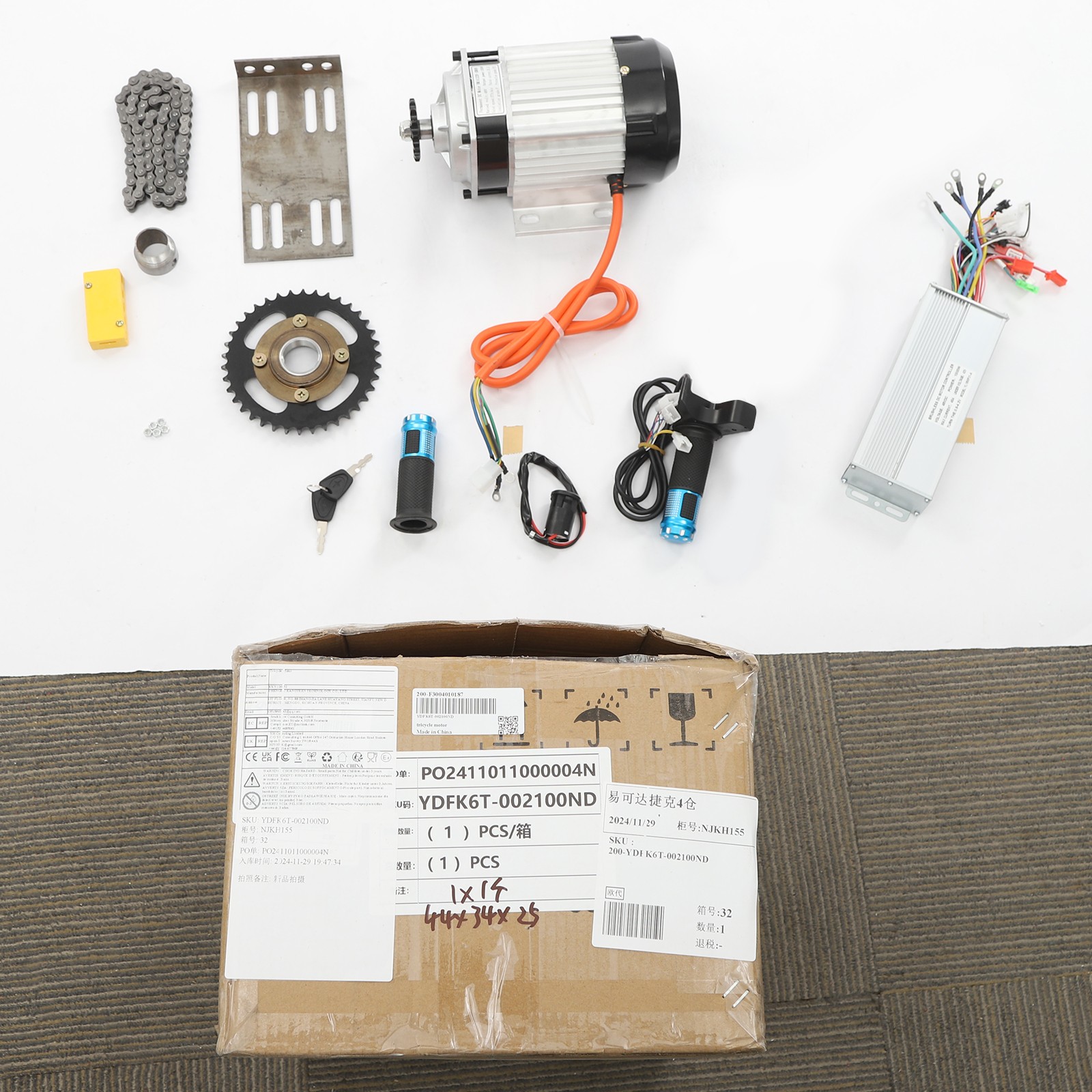

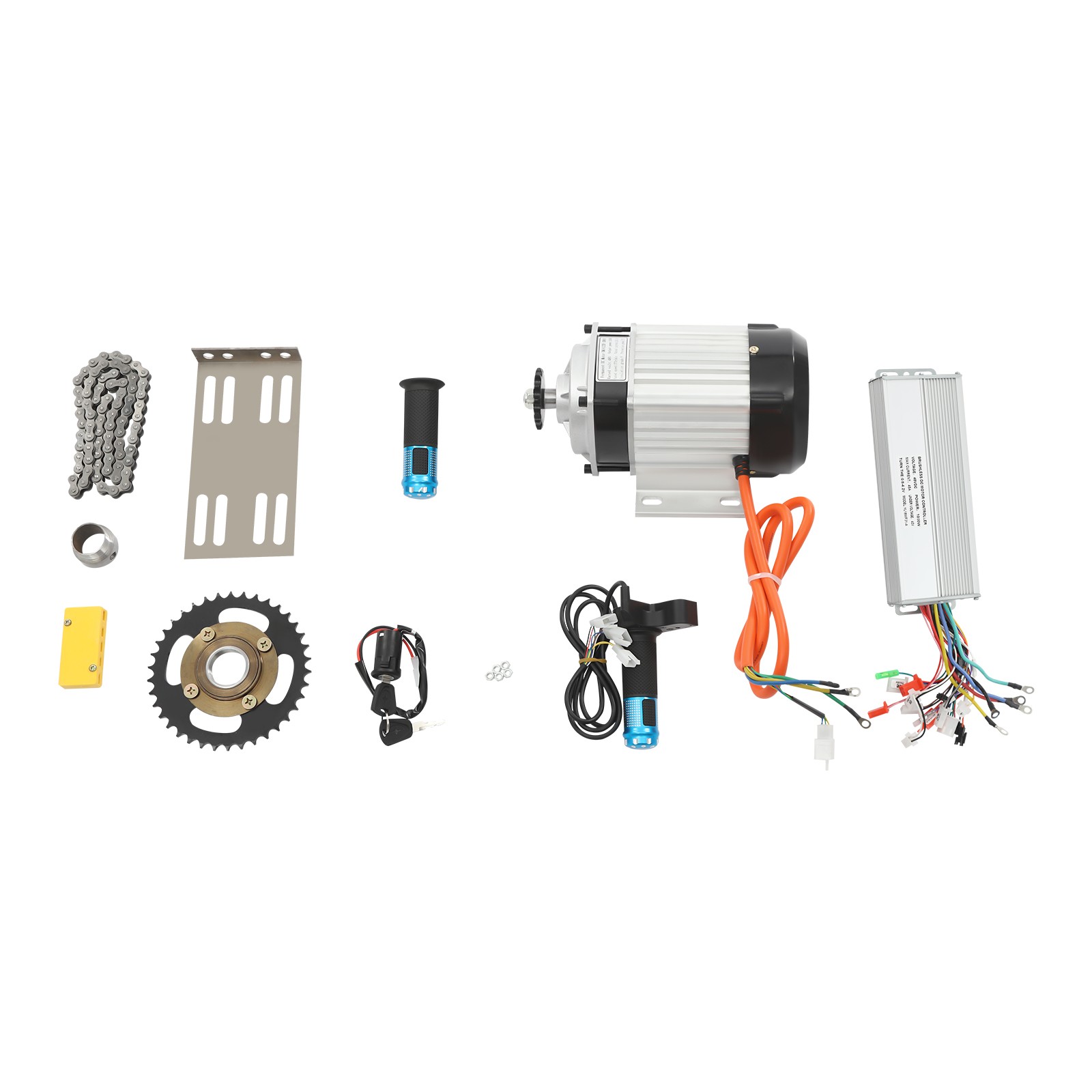

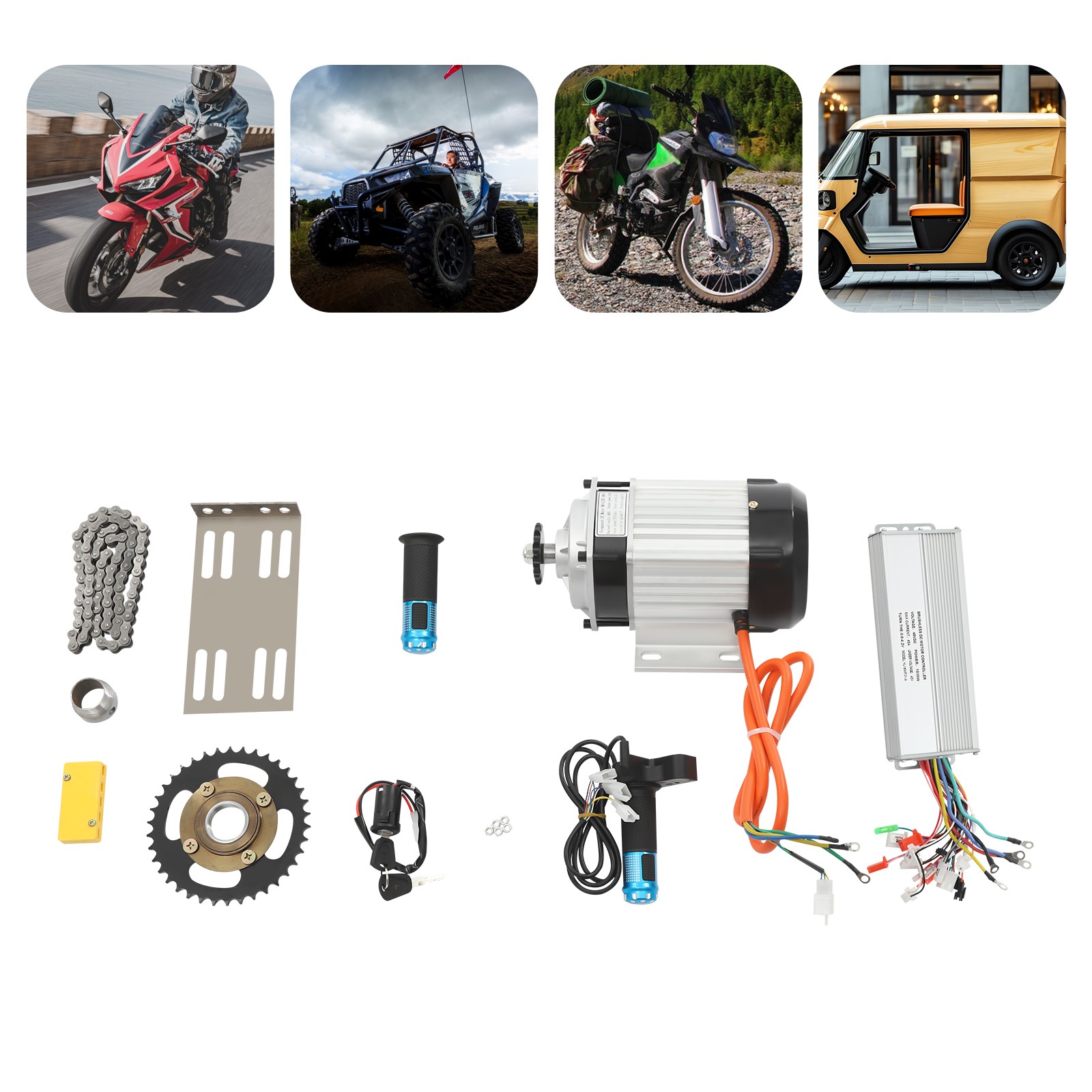

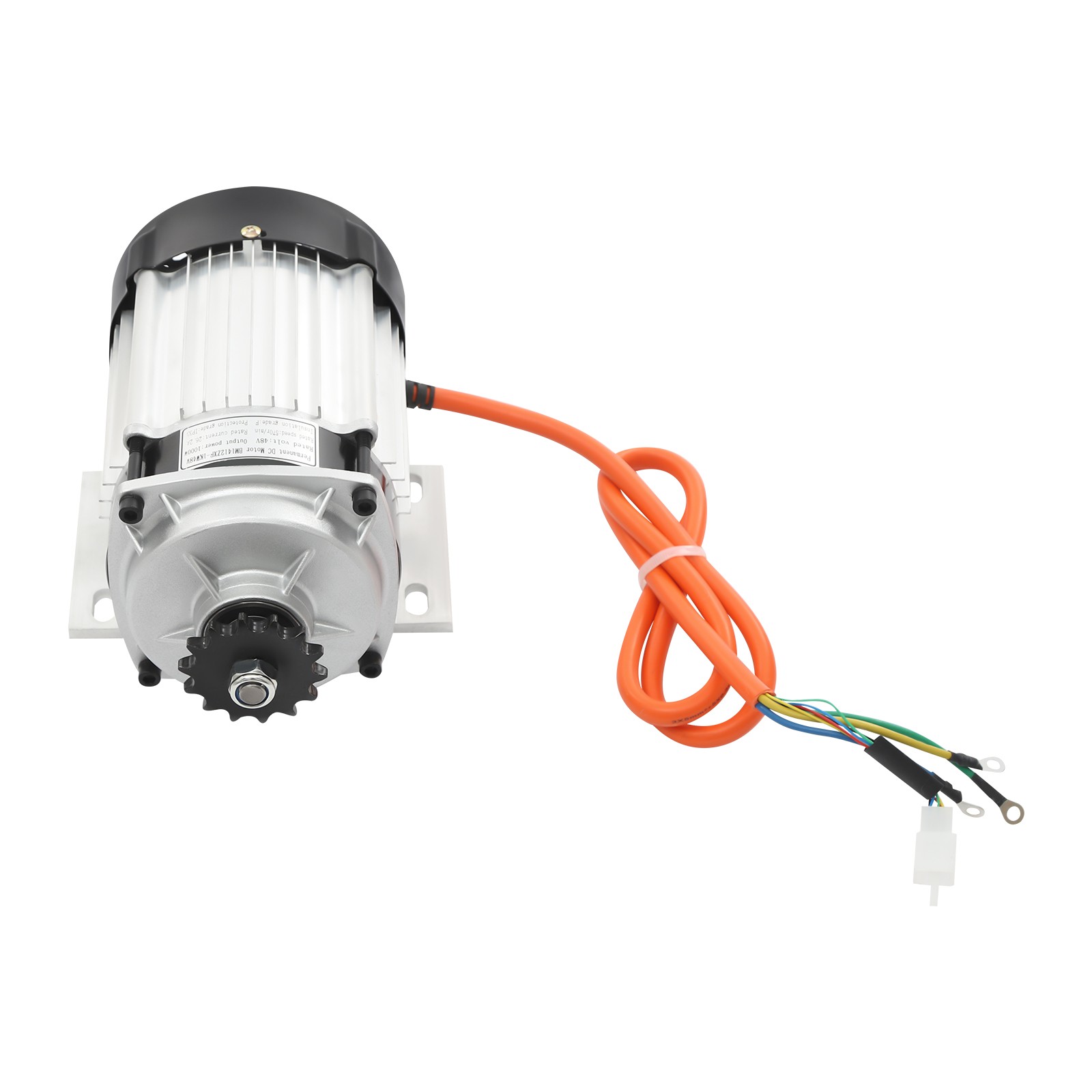

Electric Brushless Motor Set Electric Tricycle Motor Kit 48 V 1000 W 500kg max.
Specifications
| Brand | Unbranded |
| Part Type | Motor |
| Voltage | 48 V |
| Compatible Bike Type | E-Tricycle |
| Color | Multicolor |
| Material | Aluminum, Copper |
| Item Width | 6.8 in |
| Item Length | 13.8 in |
| Item Height | 3 in |

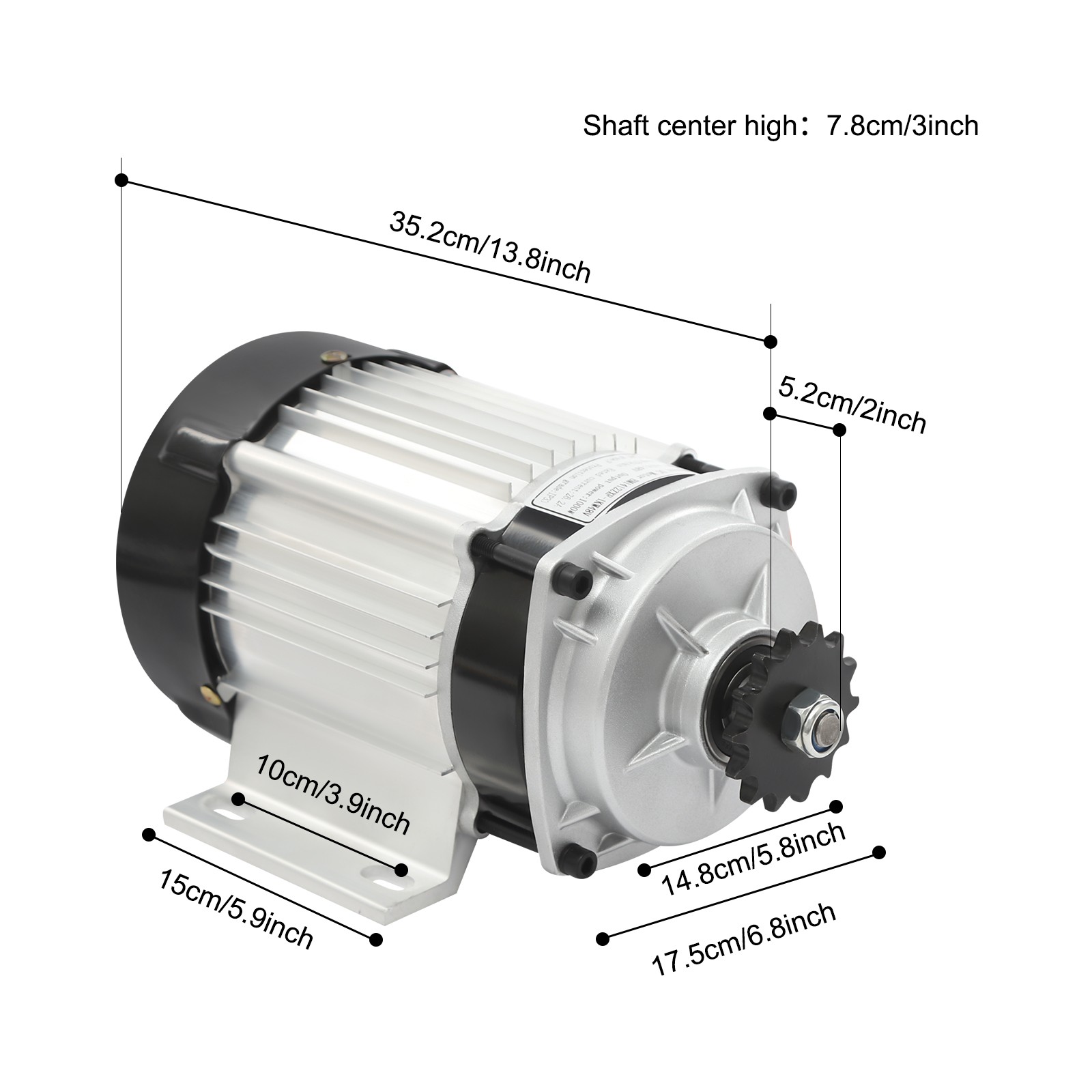

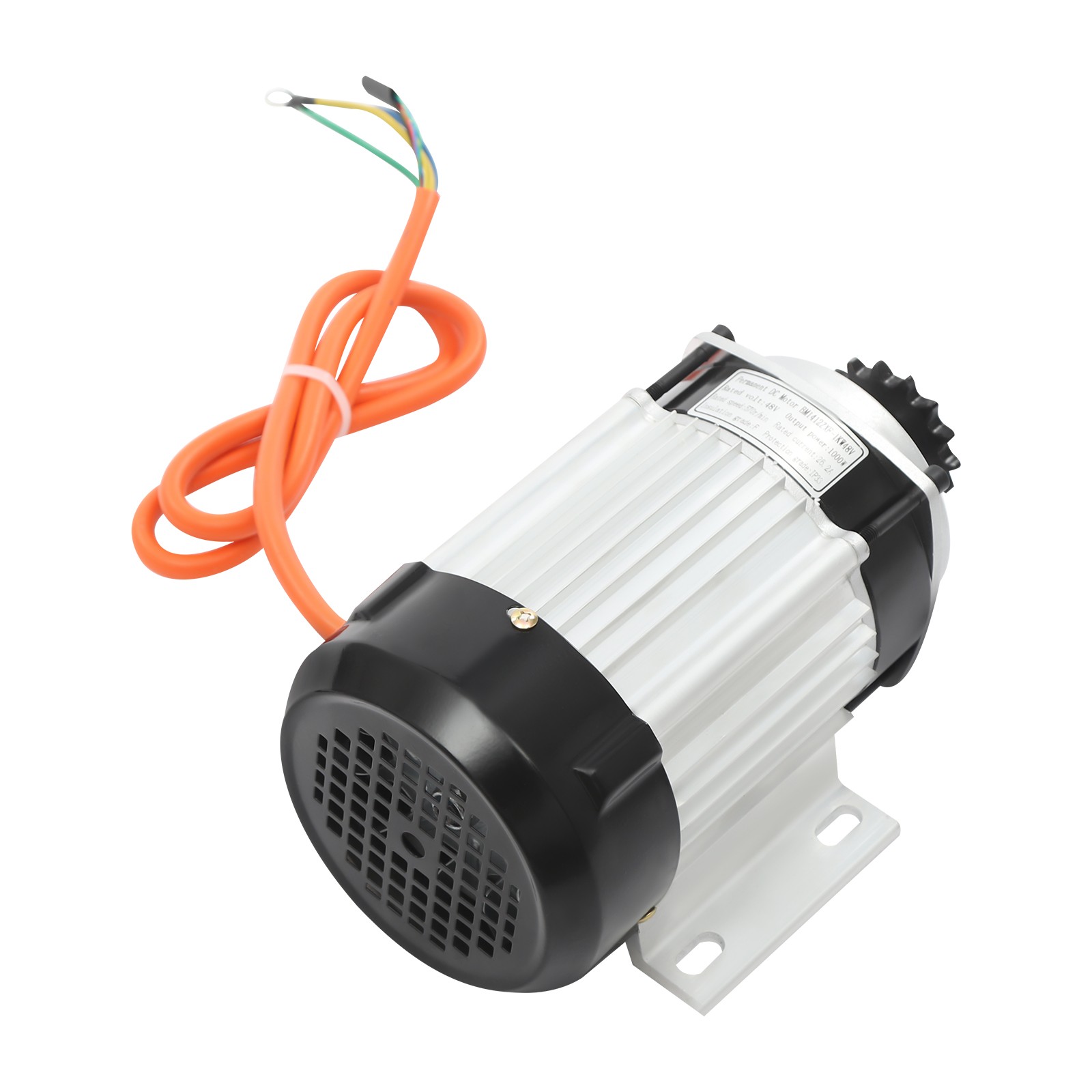

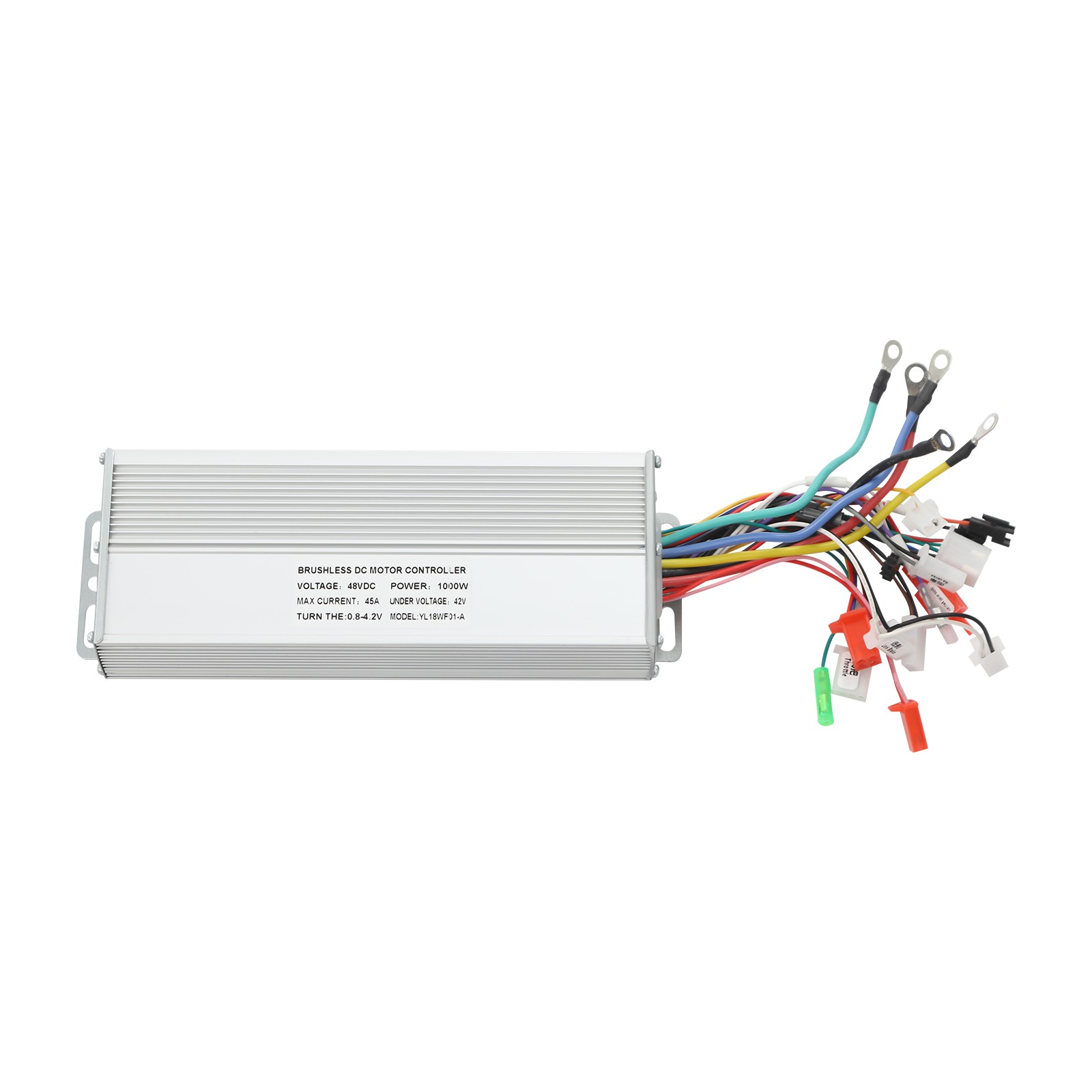

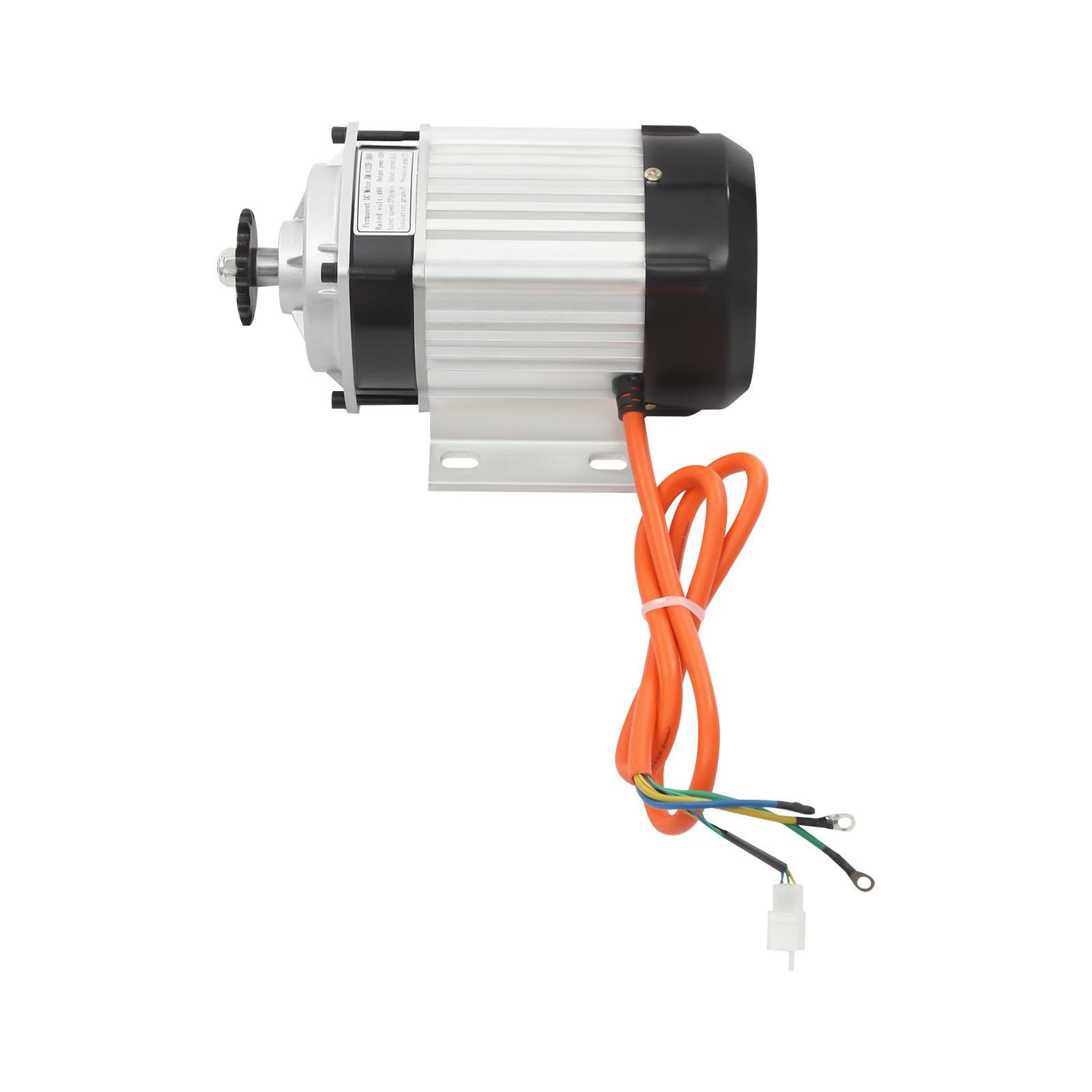

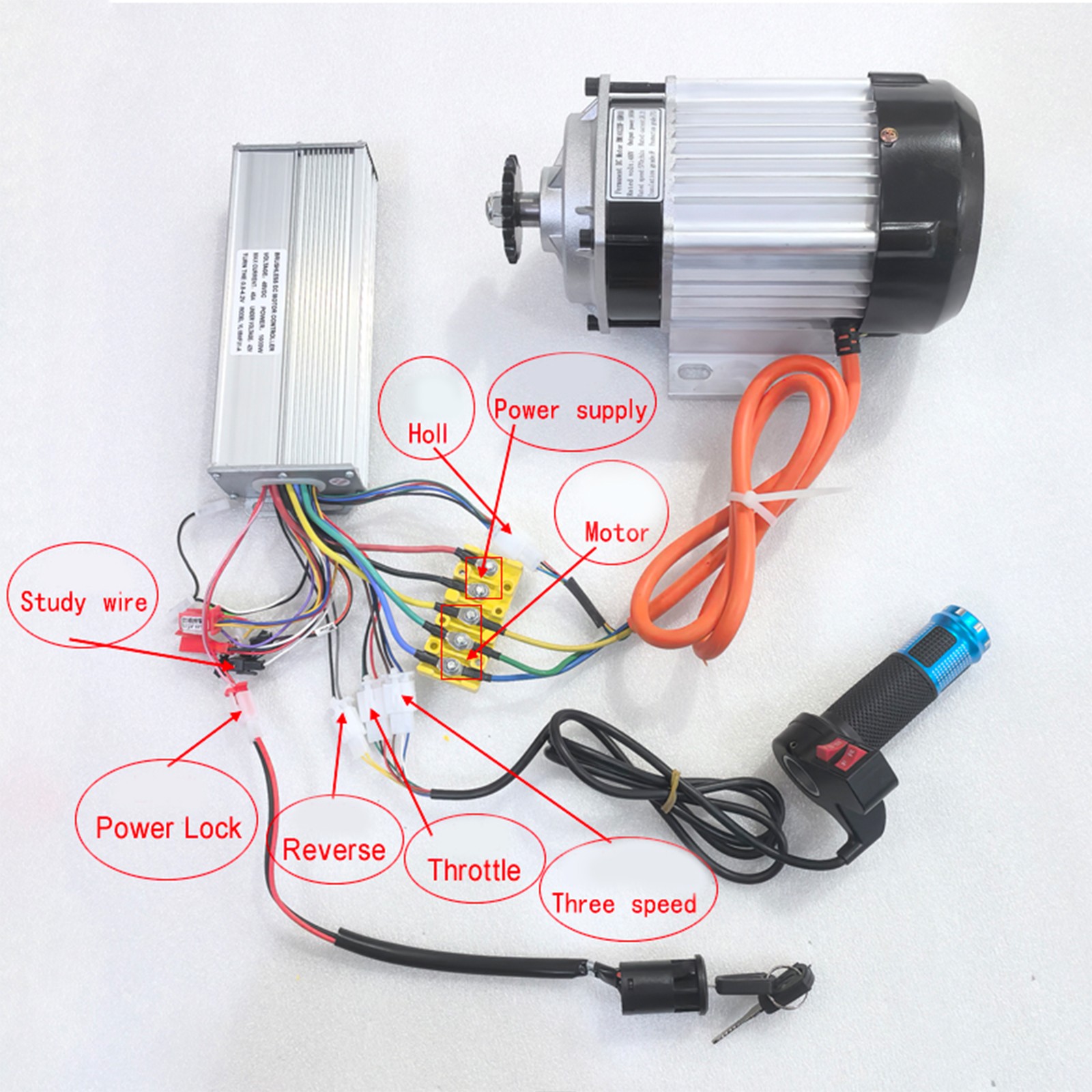

Specifications Color: Black, Silver Material: Aluminum, Copper Max. Load Bearing Capacity: About 500kg/1102.31lbs Motor Type: Brushless DC Motor Motor Controller Model: YL18WF01-A Voltage: 48VDC Power: 1000W Max. Current: 45A Under Voltage: 42V Throttle Voltage: 0.8-4.2V Assembly Required: Yes Motor Rated Speed: 570r/min Motor Rated Current: 26.2A Motor Insulation Grade: F Motor Protection Grade: IP33 Torque: 3.35 N.m Motor Size(D*L): 14.8*35.2cm/5.8*13.8in Motor Total Width(Including Base): 17.5cm/6.8in Installation Hole Spacing: 10cm/3.9in Base Length: 15cm/5.9in Shaft Size(D*H): 2.2*5.2cm/0.8*2in Shaft End Thread: M20 Shaft Center Height: 7.8cm/3in Package Size: 39*30*22cm/15.35*11.81*8.66in Gross Weight: 11kg/24.25lbs Net Weight: 10.45kg/23.04lbs .
