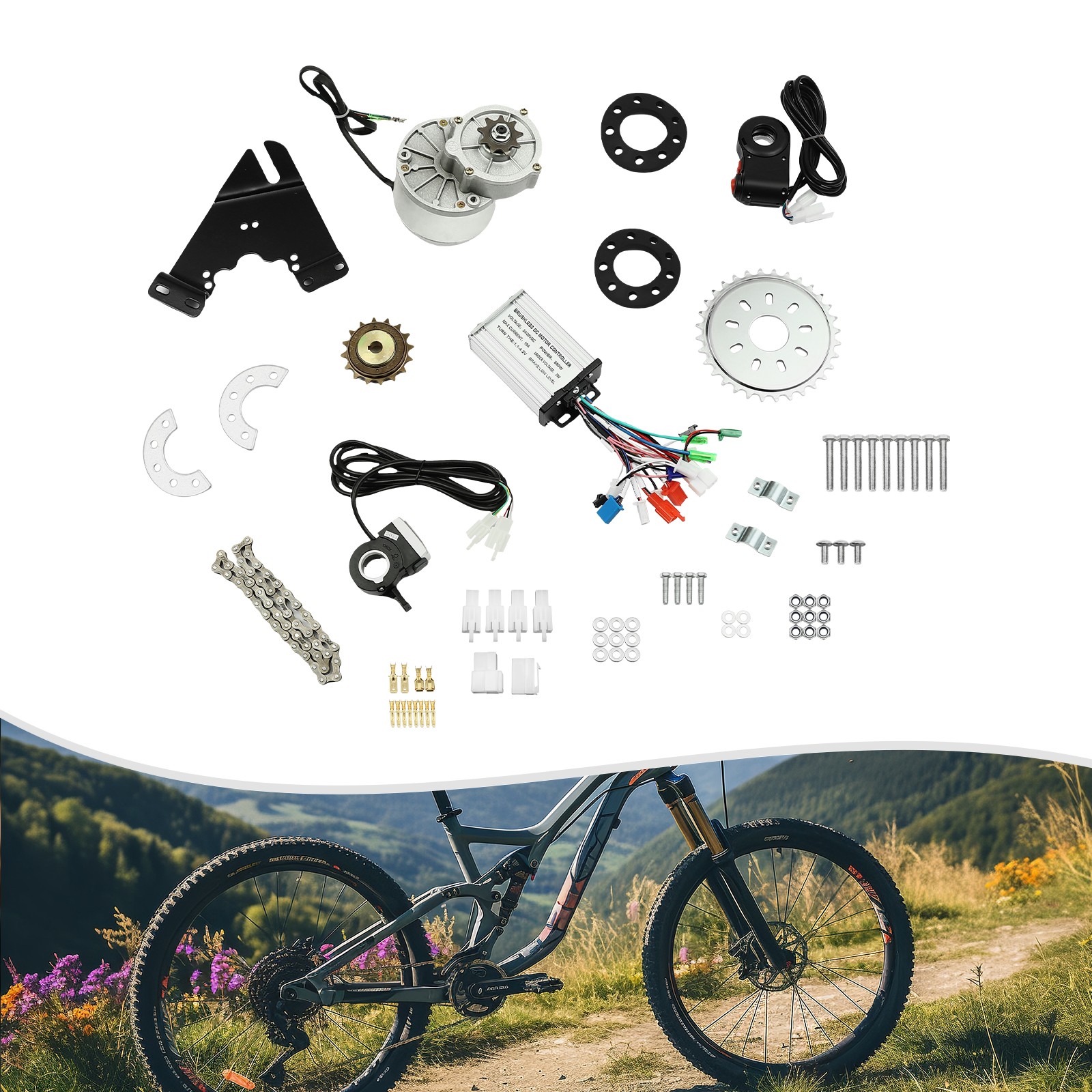

Electric Bicycle Brushless Motor Kit E-Bike Conversion Installation Kit 36V 350W
Specifications
| Brand | Unbranded |
| Part Type | Motor |
| Voltage | 36 V |
| Compatible Bike Type | Spoke Wheel Bike |
| Color | Silver, Black |
| Model | MY1016Z3 |
| Speed Gears | Three(80%,100%,110%) |
| Power | 350W |
| Suspension Type | Rear |
| Rated Speed(Before Speed Reduction) | 3000RPM |
| Rated Speed(After Speed Reduction) | 330RPM |
| Chainwheel Outer Diameter | 134mm/5.27inch |
| Chainwheel Inner Diameter | 35mm/1.38inch |
| Chainwheel Teeth Space | 12.7mm/0.5inch |
Specifications Color: Silver, Black Material: Aluminum, Copper, Rare Earth Magnet Steel Speed Gears: Three(80%,100%,110%) Motor Efficiency: ≥78% Rated Voltage: 36V DC Power: 350W Temperature Resistance: 120℃/248℉ Model: MY1016Z3 Suspension Type: Rear Special Feature: Electric Torque: About 10.85N·m Unload Current: ≤2A Unloaded Speed: 3850Rpm Rated Current: 12.5A Rated Speed(Before Speed Reduction):3000RPM Rated Speed(After Speed Reduction): 330RPM Gear Ratio: 9.78:1 Insulation Class: F Protect Grade: IP33 Motor Controller Voltage: 24/36VDC Motor Controller Max Current: 16A Motor Controller Power: 350W Motor Controller Voltage: 1.1-4.2V Under Voltage: 30V Brake: Low Level Suitable Bike Type: Spoke Wheel Bike Suitable Bike Wheel Diameter: ＜68.58cm/27inch Suitable Bicycle Hub Diameter: ＜35mm/.
