Electric Bicycle Brushless Motor Kit Digital E-Bike Conversion Set 24V 250W
USD 80.29 USD
Specifications
| Brand | Unbranded |
| Part Type | Motor |
| Voltage | 24 V |
| Color | Silver, Black |
| Compatible Bike Type | E-Mini Bike |

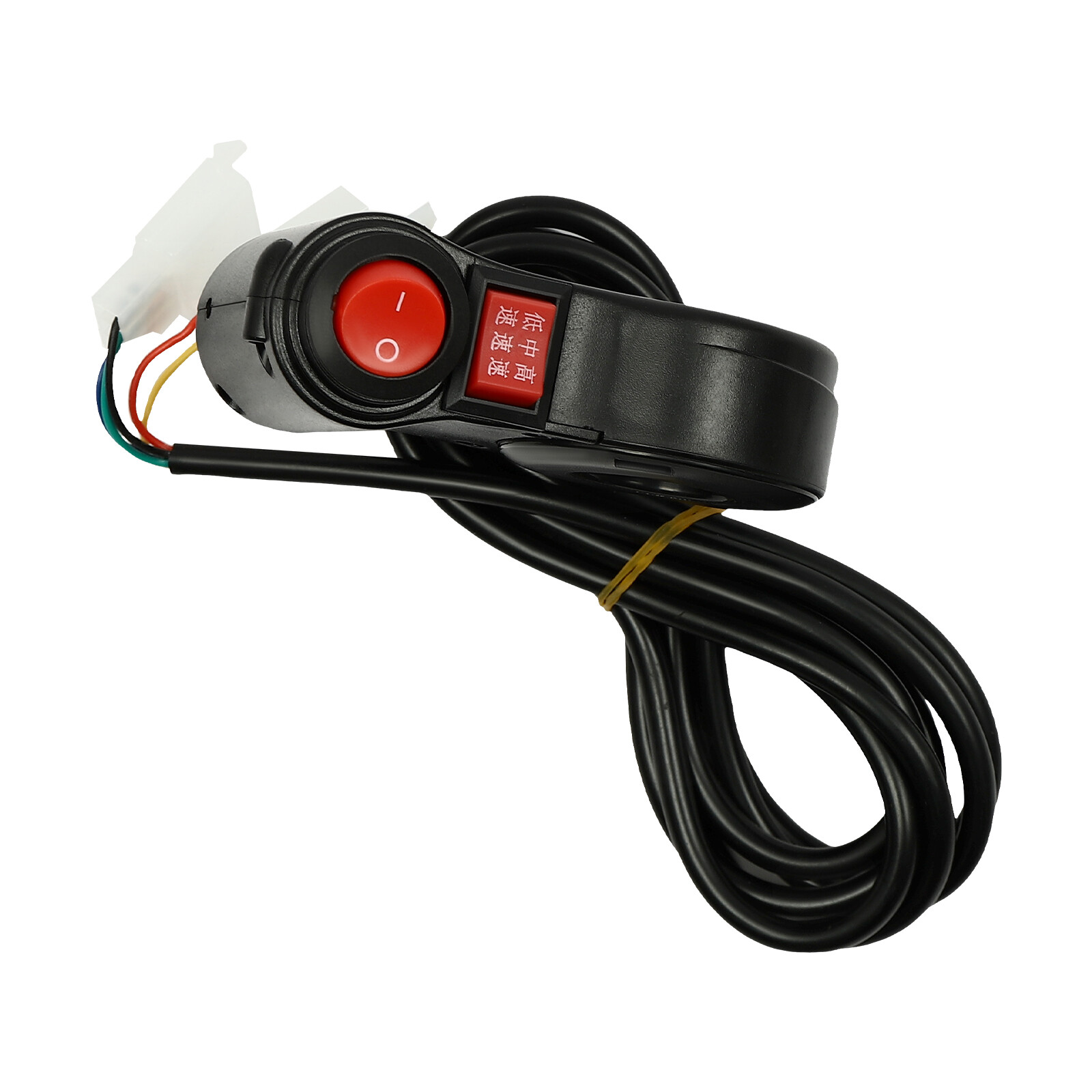

| Speed Gears | Three(80%,100%,110%) |
| Motor Efficiency | ≥78% |
| Model | MY1016Z3 |
| Suspension Type | Rear |
| Torque | About 7.82N·m |
| Rated Current | 13A |
| Rated Speed(Before Speed Reduction) | 3000RPM |
| Rated Speed(After Speed Reduction) | 330RPM |
| Gear Ratio | 9.78:1 |
| Protect Grade | IP33 |

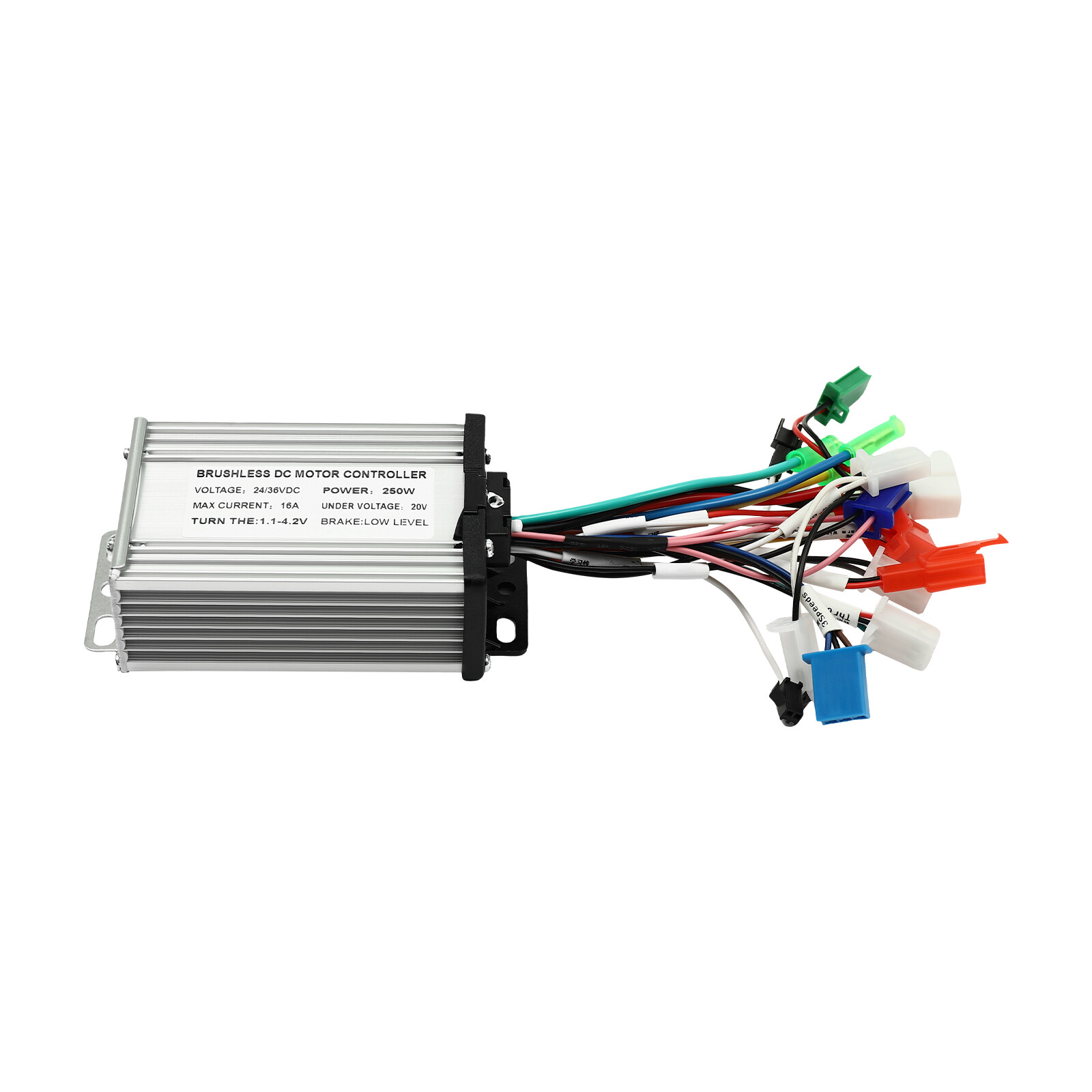

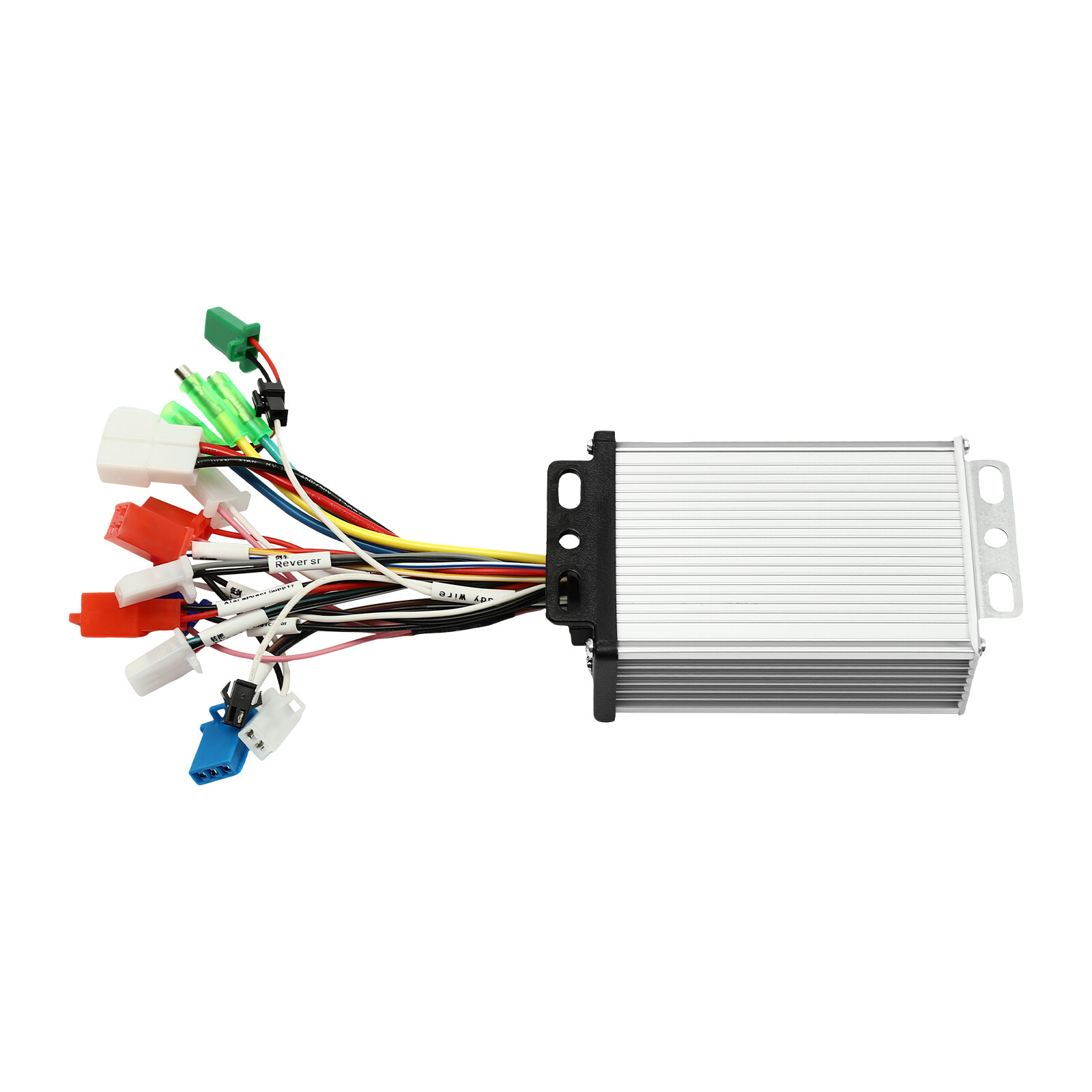

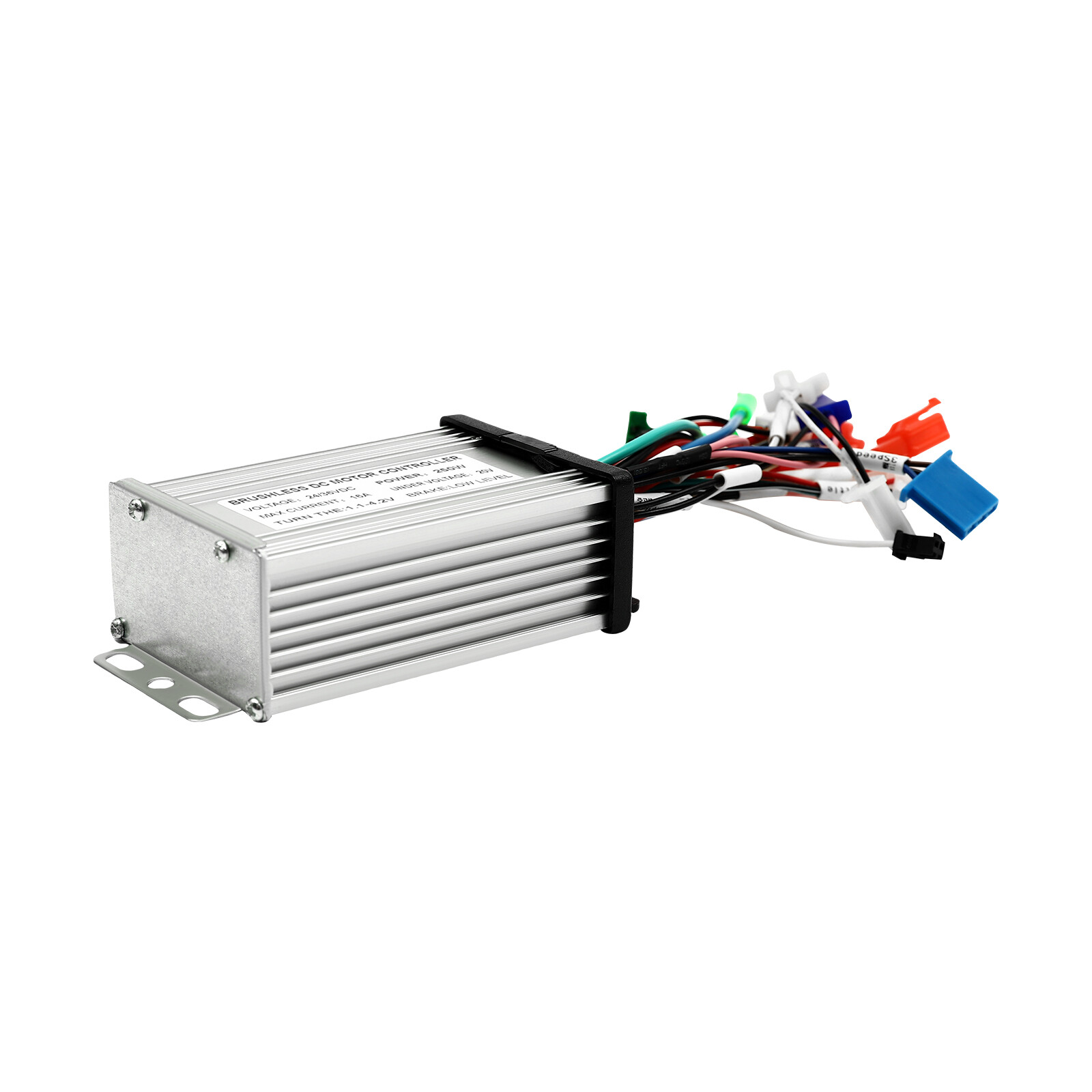

| Motor Controller Voltage | 24/36VDC |
| Motor Controller Max Current | 16A |
| Motor Controller Power | 250W |
| Under Voltage | 20V |
| Brake | Low Level |
| Suitable Bike Type | Spoke Wheel Bike |
| Suitable Bike Wheel Diameter | ＜68.58cm/27inch |
| Suitable Bicycle Hub Diameter | ＜35mm/1.3inch |
| Assembly Required | Yes |
| Chainwheel Outer Diameter | 134mm/5.27inch |
| Chainwheel Inner Diameter | 35mm/1.38inch |
| Chainwheel Teeth Space | 12.7mm/0.5inch |
| Gross Weight | 4.5kg/9.92lbs |

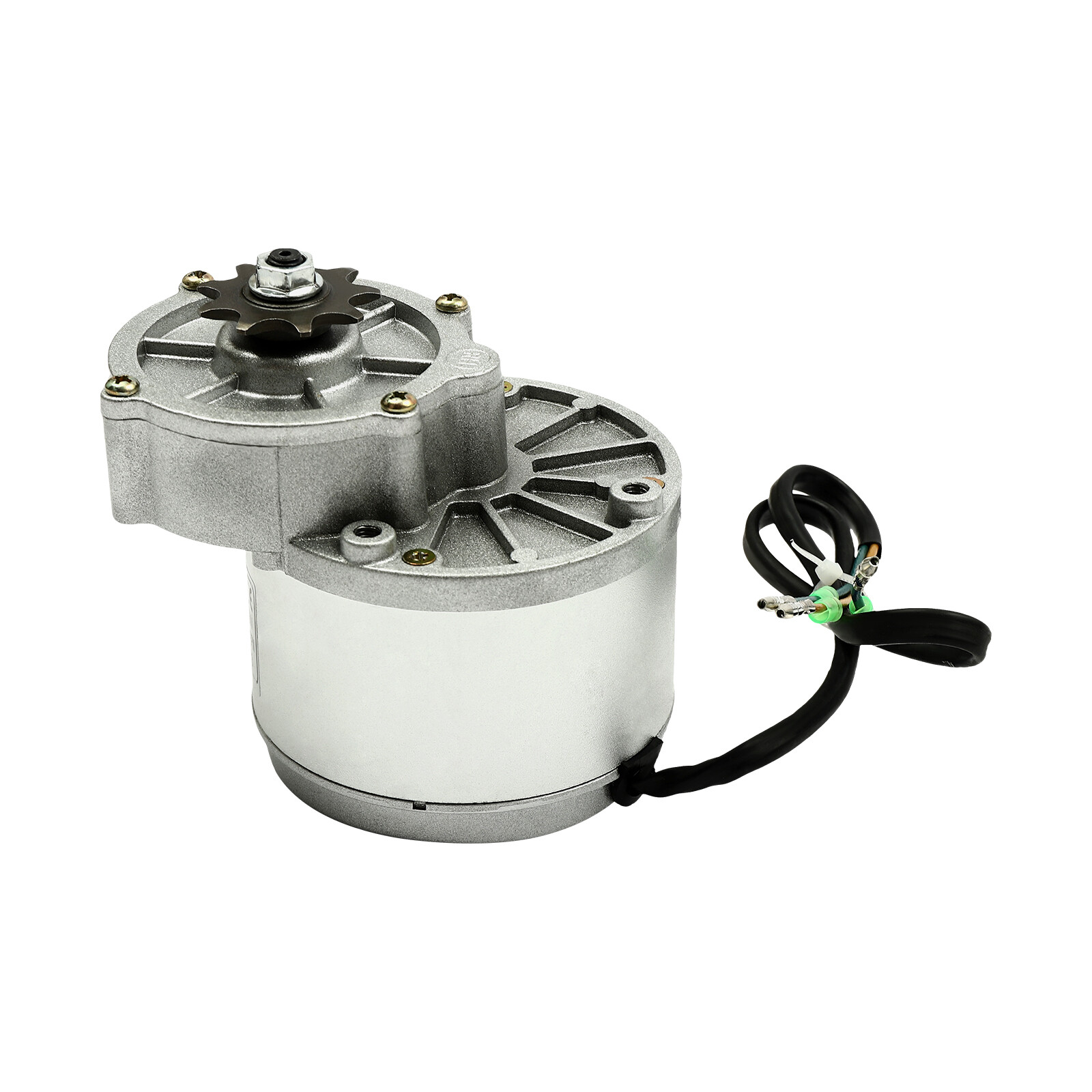

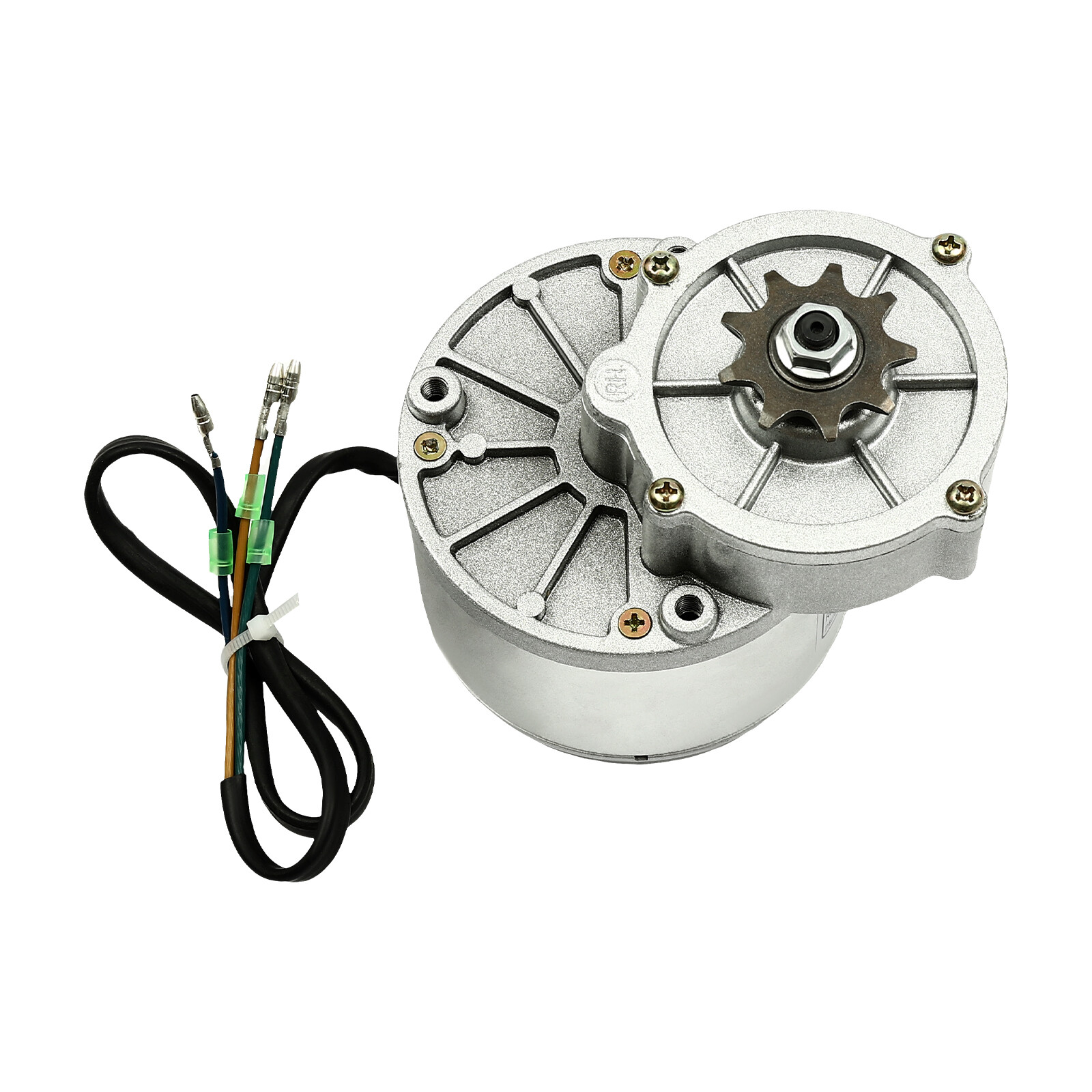

Brushless Motor: The brushless motor features low friction, low noise, and smooth working. Its aluminum housing, pure copper coils and rare earth magnet steel make it sturdy and durable, and an ideal choice for your electric bike.
Related Items
Aluminum Alloy Handlebar Clamp Mount Base with 17Mm TPU Ball for round Rails Dia
36V 48V 250W 350W 500W 1000W 1500W MTB Electric Bicycle Rear Wheel Hub Motor
48V 350W 10 Inch Hub Motor for Electric Scooter Folding E-Bike Rear Wheel
Lightweight Rear Post Mount Adapter for Hydraulic Disc Brakes 140mm to 160mm
Mankind Epoch v2 Front Load Stem Black 48mm Reach 8mm Rise BMX Bike Parts

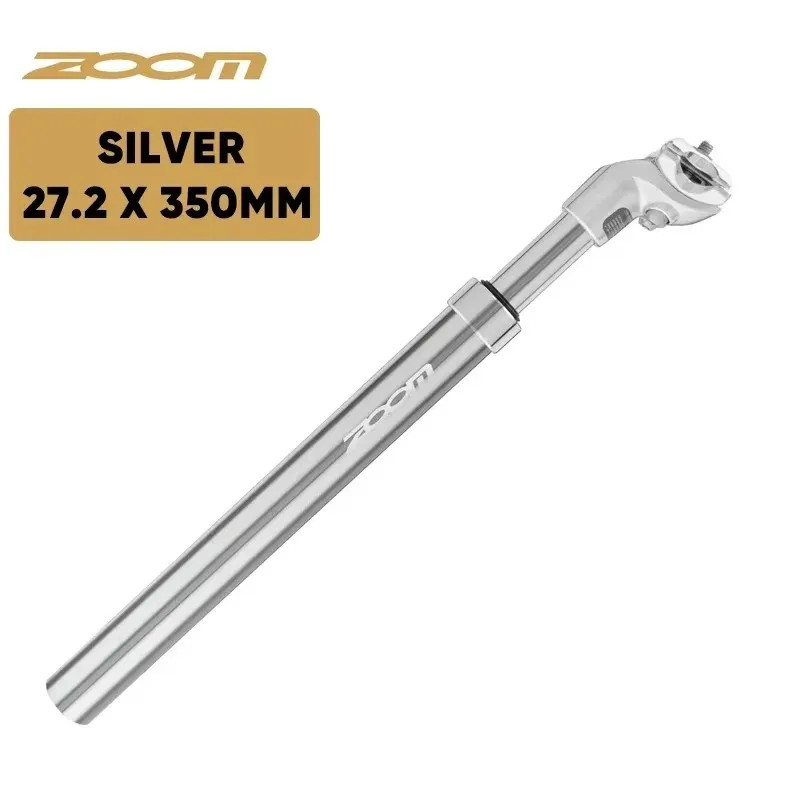

ZOOM Damping Bicycle Seatpost MTB Suspension Seat Tube 350Mm 40/50Mm Travel Shoc
