48V 36V 17A Controller For 250W 350W Brushless Motor Waterproof Electric Bicycle
USD 38.56 USD
Specifications
| Part Type | Controller |
| Color | Silver |
| Compatible Bike Type | Electric Bike |
| Electric Bike Part Type | Controller |
| Voltage | 36V/48V |

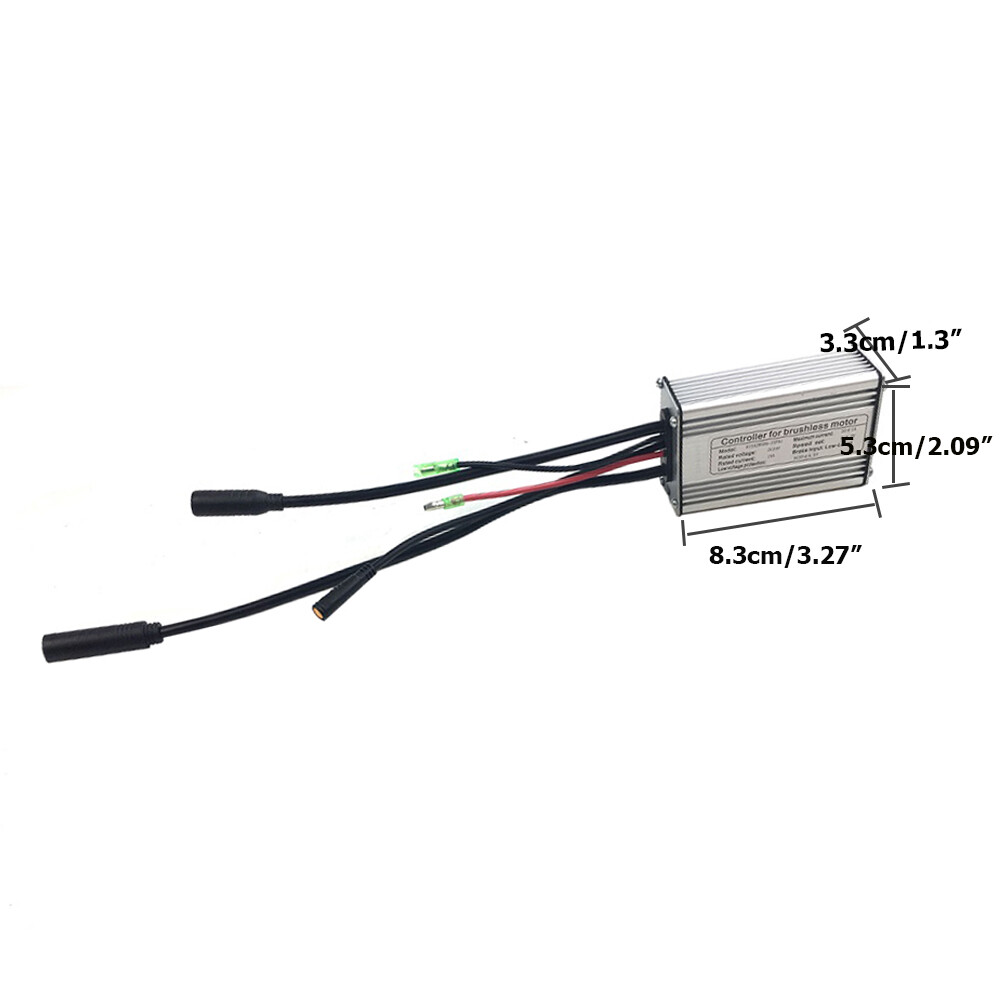

| Controller Dimension | 8.3 * 5.3* 3.3cm |
| Weight | 350g |
| Mosfets | 6 mosfets |
| Cable Length | all about 10-13cm |
| Maximum Current | 17±1A |
| Rated Voltage | DC36V/48V |
| Speed Set | 1-4.2V |
| Brake Input | Low-Level |
| Low Voltage Protection | DC30/40±0.5V |
| Colour | Silver |
| Brand | eocycle |
| UPC | 782895278770 |

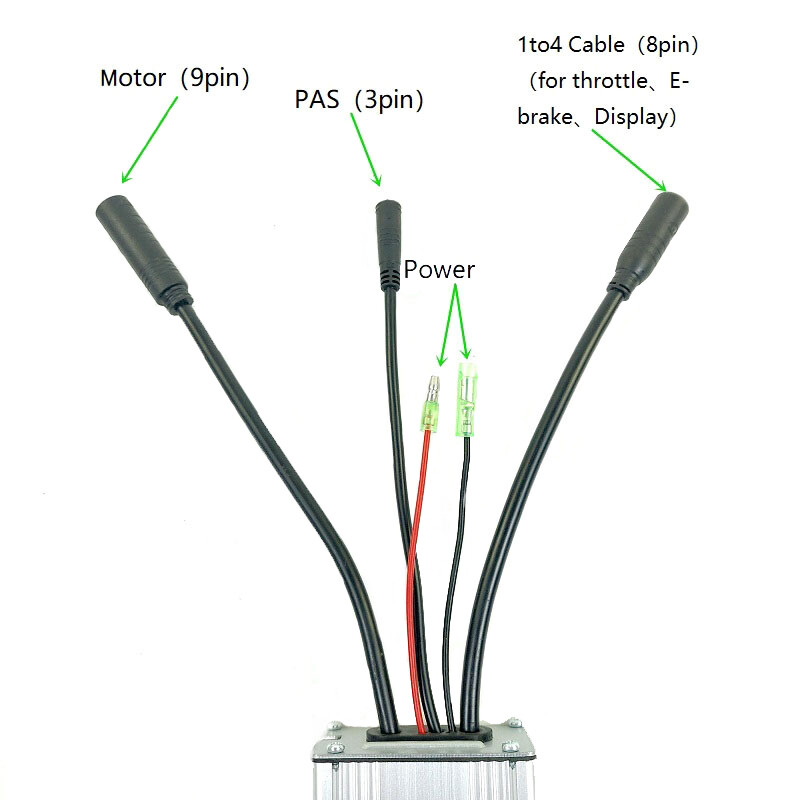

First of all, make sure that the outlet of your motor is waterproof nine cores,and motor is brushless hub motor. motor (9pin waterproof plug ) power (red-black plug). 1T4 cable plug(8pin waterproof plug-Throttle-Display-Ebrake 2).
