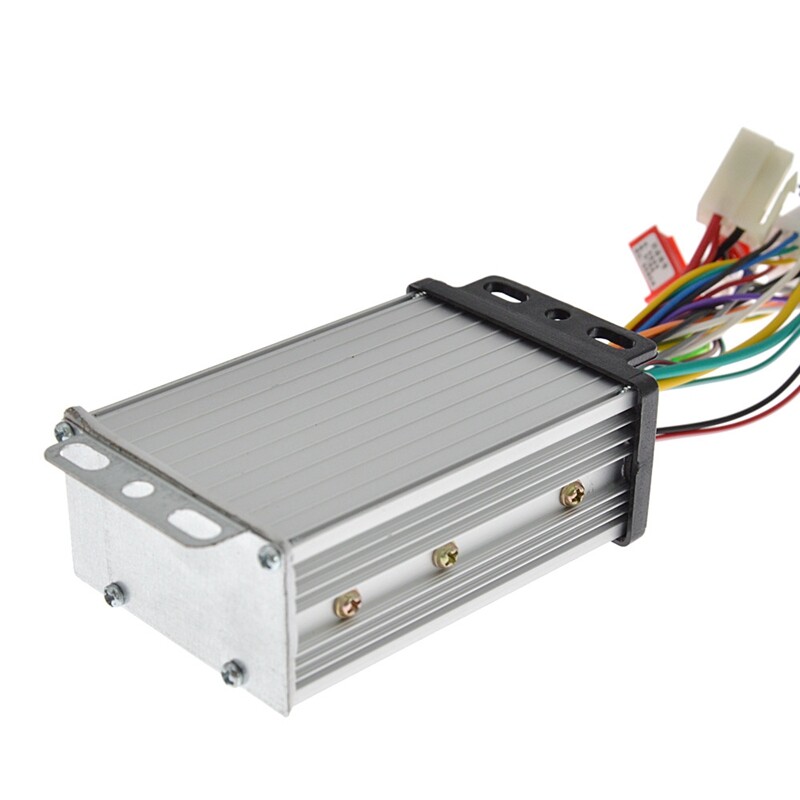

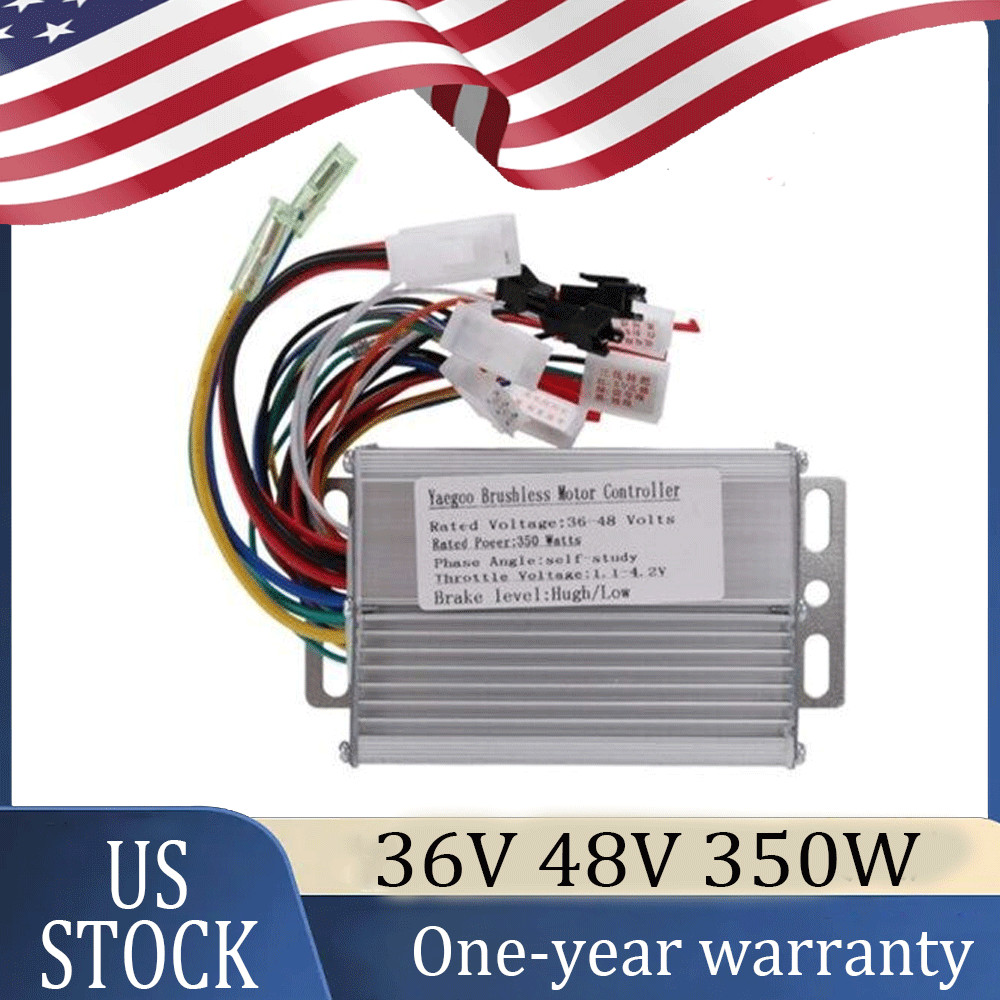

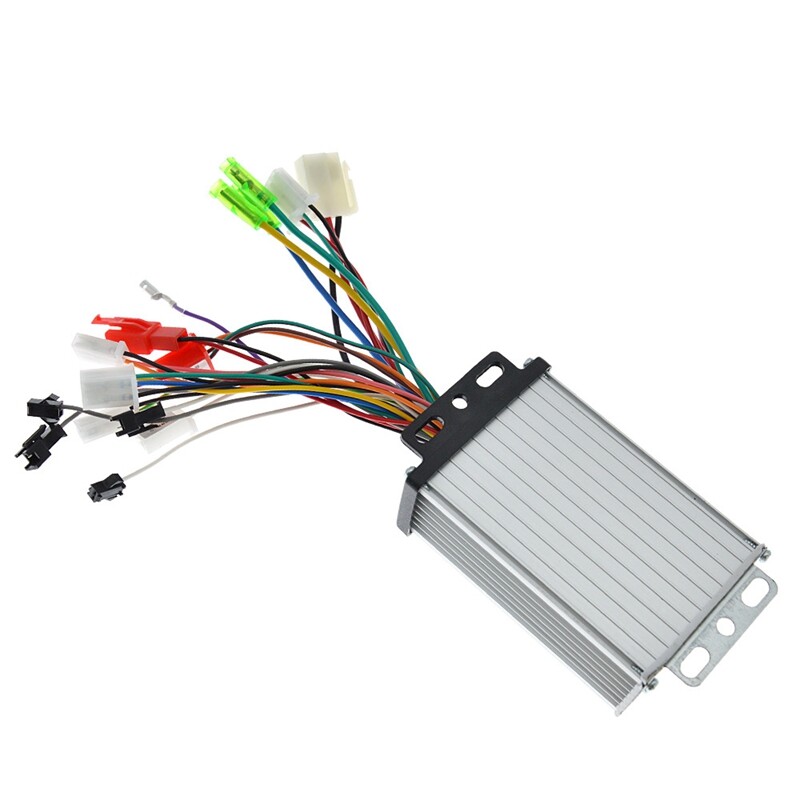

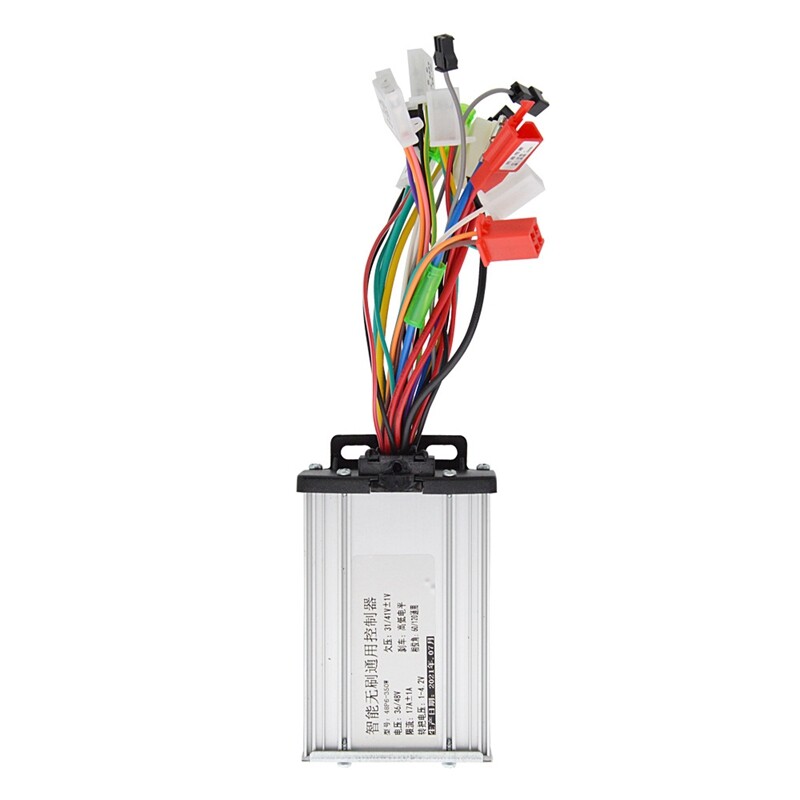

36V/48V 350W DC Electric Bicycle E-bike Scooter Brushless Motor Speed Controller
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Compatible Brand | Universal |
| Color | silver |
| Compatible Model | Regular Type |
| MPN | Does Not Apply |
| Set Includes | Regular Type |
| Material | Regular |
| Item Length | Regular Type |
| Battery Type | Regular Type |
| Brand | Unbrand |
| Hersteller | SODIAL |
| Battery Capacity | Regular Type |
| Energy | Regular |
| Capacity | Regular |
| Manufacturer Warranty | 1 Year |
| Voltage | Regular |
| Item Height | Regular Type |
| Model | Regular Model |
| Compatible Bike Type | Regular Type |
| Electric Bike Part Type | Regular Type |
| Country/Region Of Manufacture | China |
| Number Of Items | Regular Type |
| Item Width | Regular Type |
| Item Weight | Universal |
| Part Type | Regular Type |

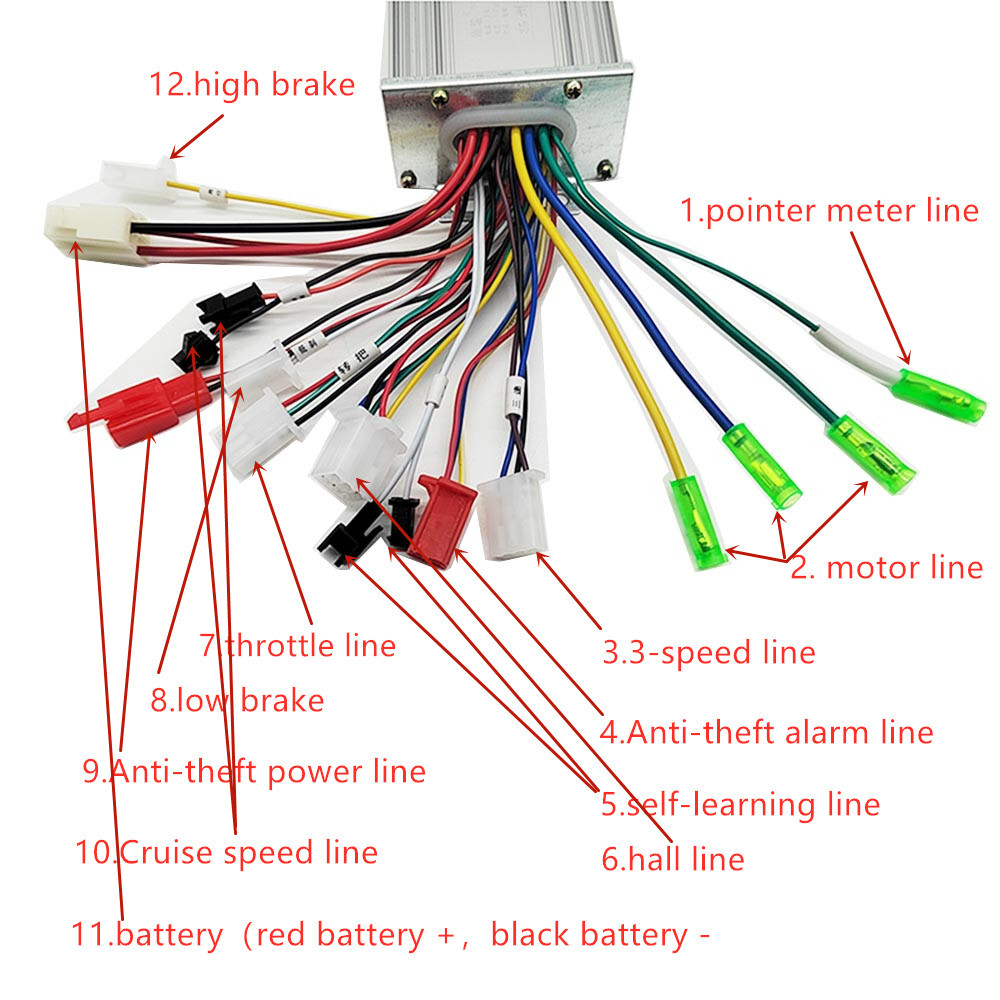

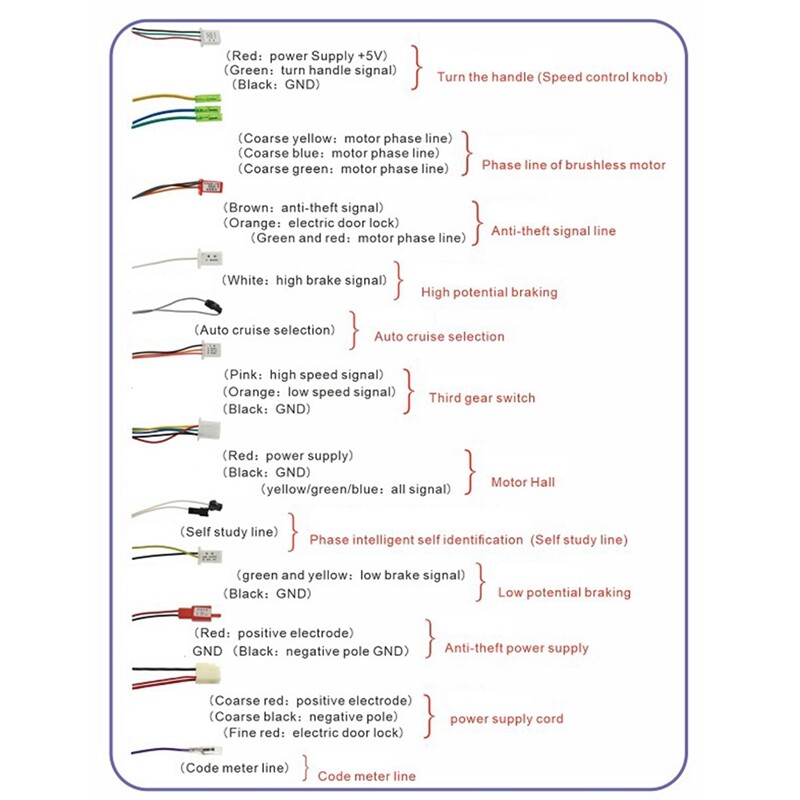

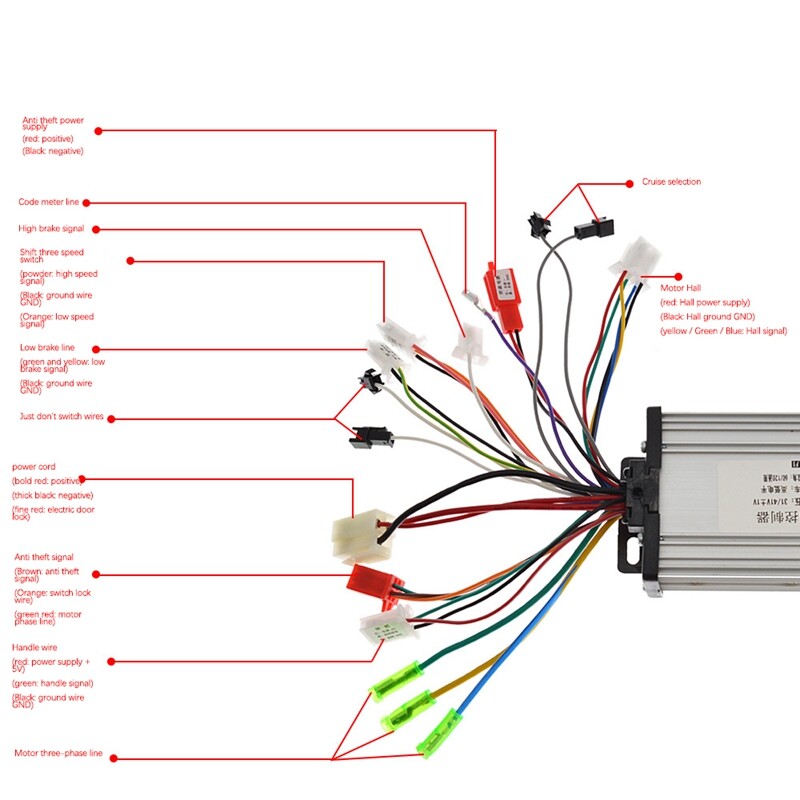

36V-48V 350W controller can work with hall sensor/hall sensorless Rated Voltage: 36V/48V Low Voltage : 31V/42V±0.5V Rated Power: 350W Limit Current: 17A 1.pointer meter line 2. motor line 3.3-speed line 4.Anti-theft alarm line 5.self-learning line 6.hall line 7.throttle line 8.low brake 9.Anti-theft power line 10.Cruise speed line 11.battery（2 red wires battery +，black battery -） 12.high brake 1.connect the motor line (color to color） 2. connect the battery line(2 red wires :battery + , black:battery-) 3. connect the controller throttle line（color to color） 4. connect the hall line(if motor without hall line, don’t need connect) 5.docking the two self-learning lines, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.)
