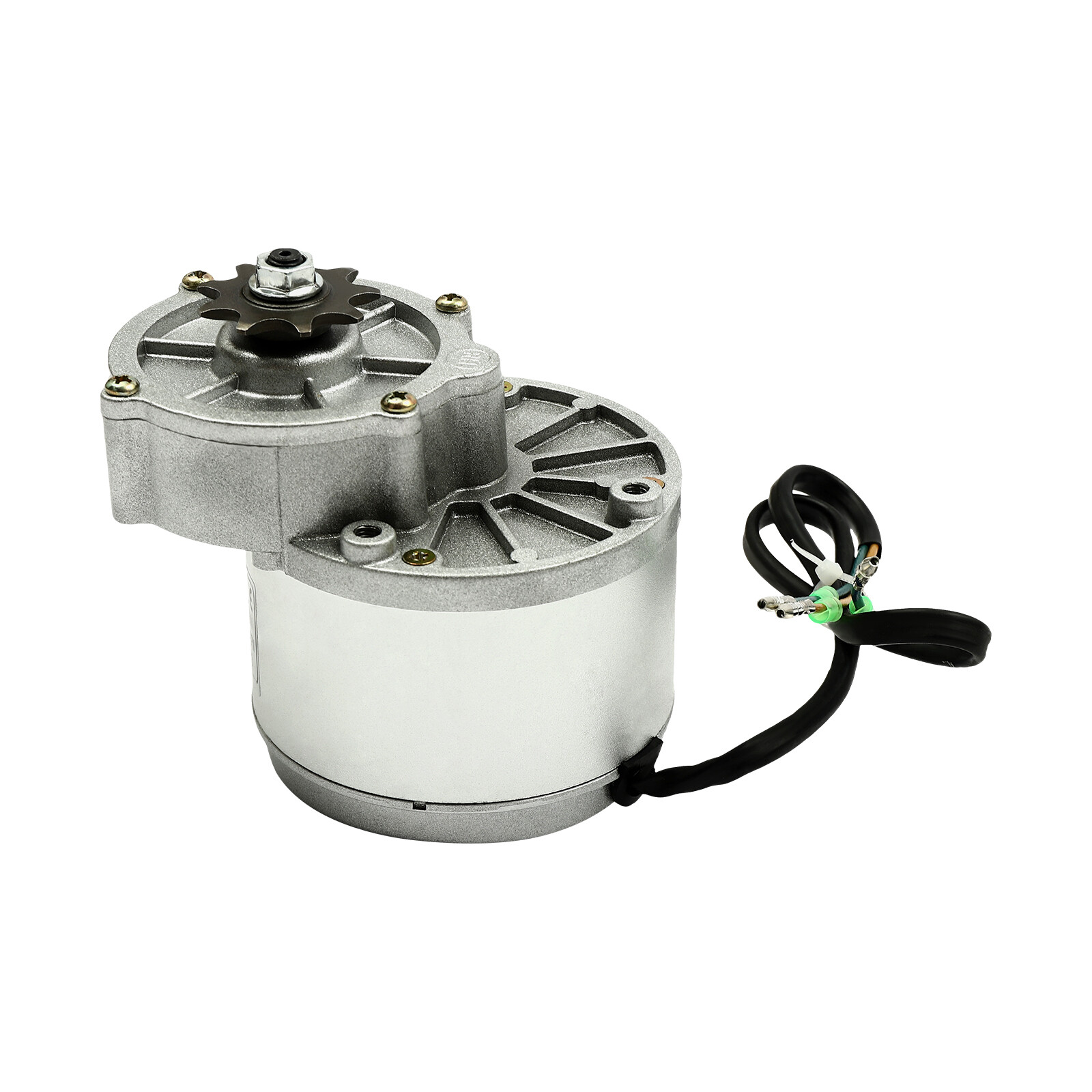

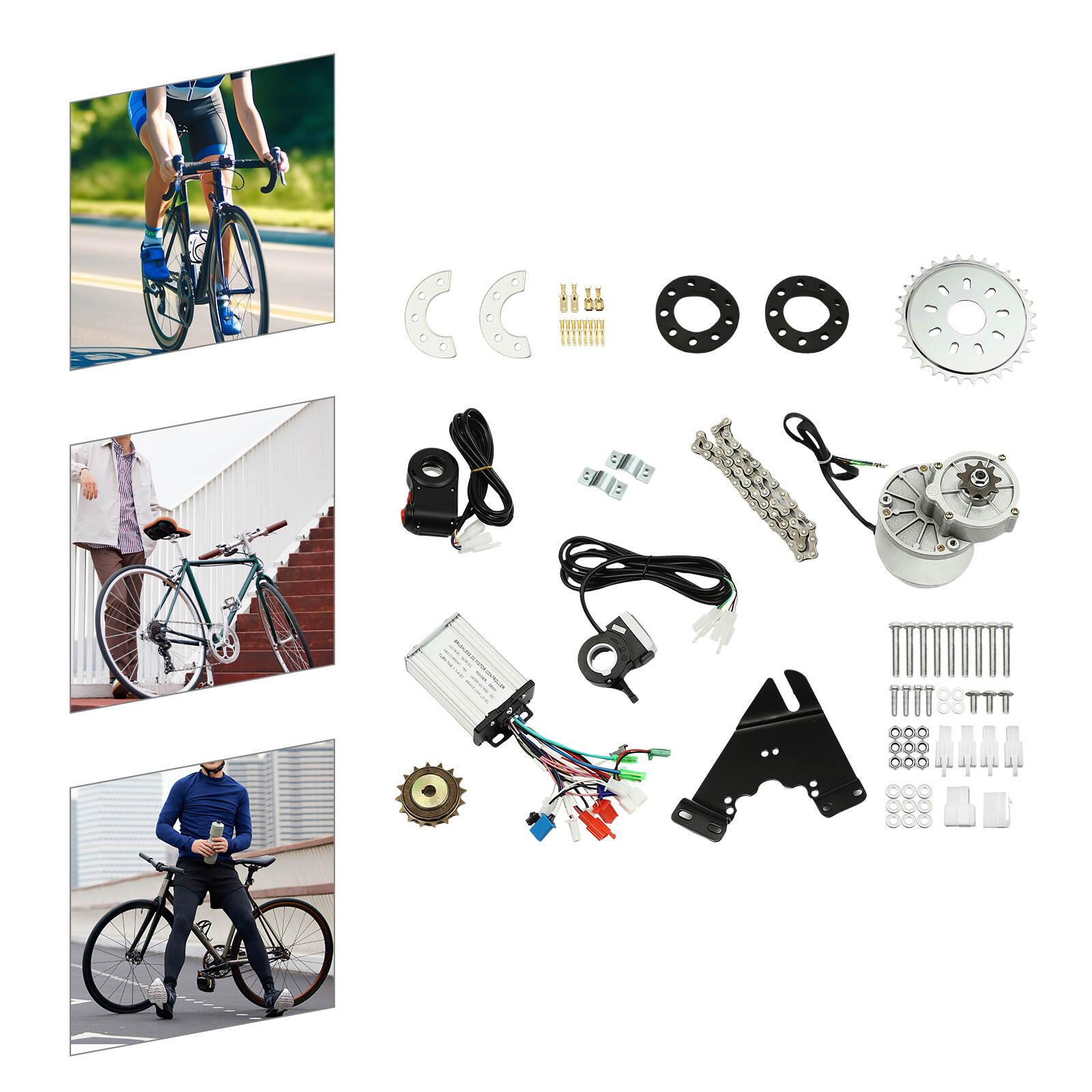

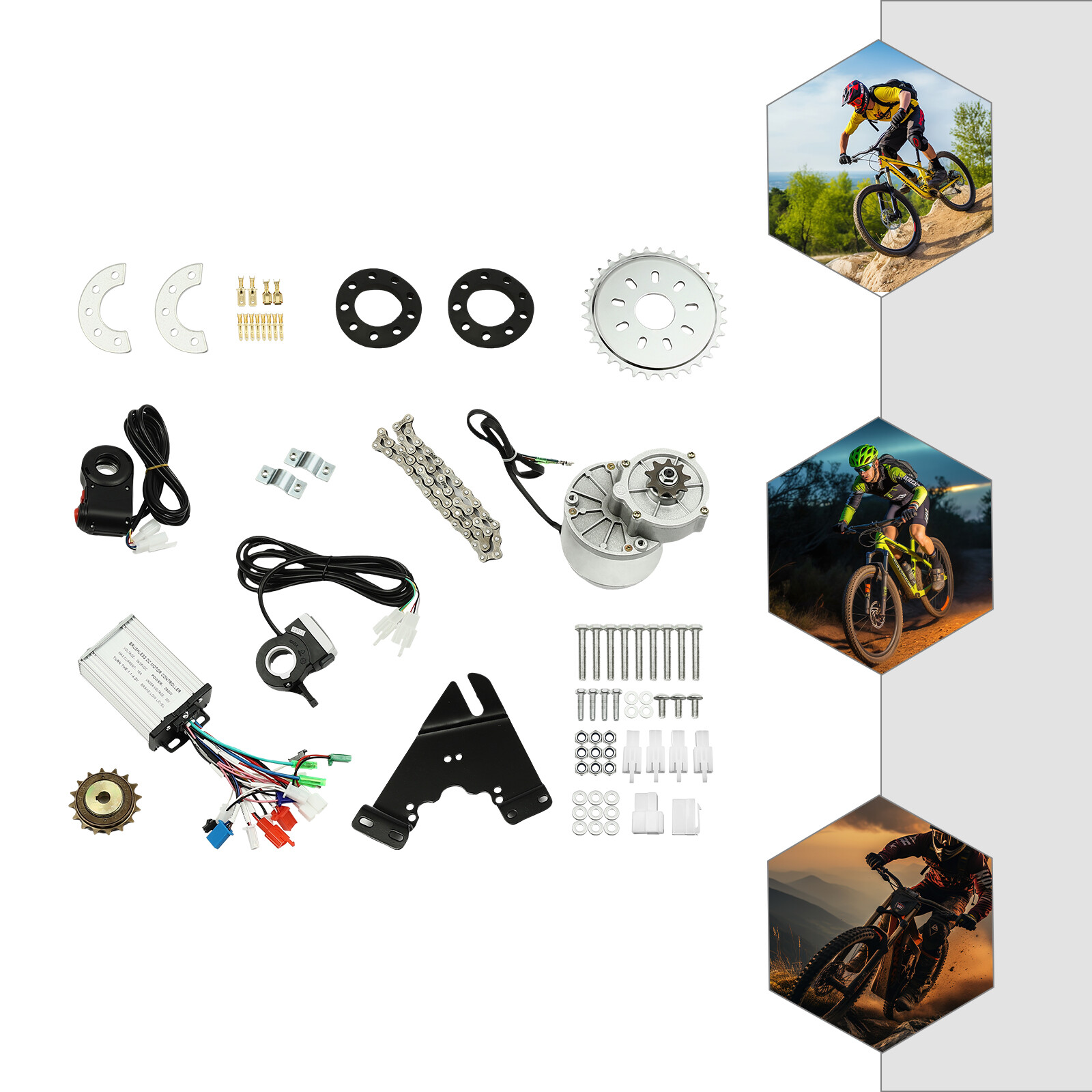

24V 250W Rear Electric Bicycle Brushless Motor Conversion Kit Adjustable Speed
Specifications
| Brand | Unbranded |
| Part Type | Motor |
| Voltage | 24 V |
| Color | Silver, Black |
| Compatible Bike Type | E-Mini Bike |

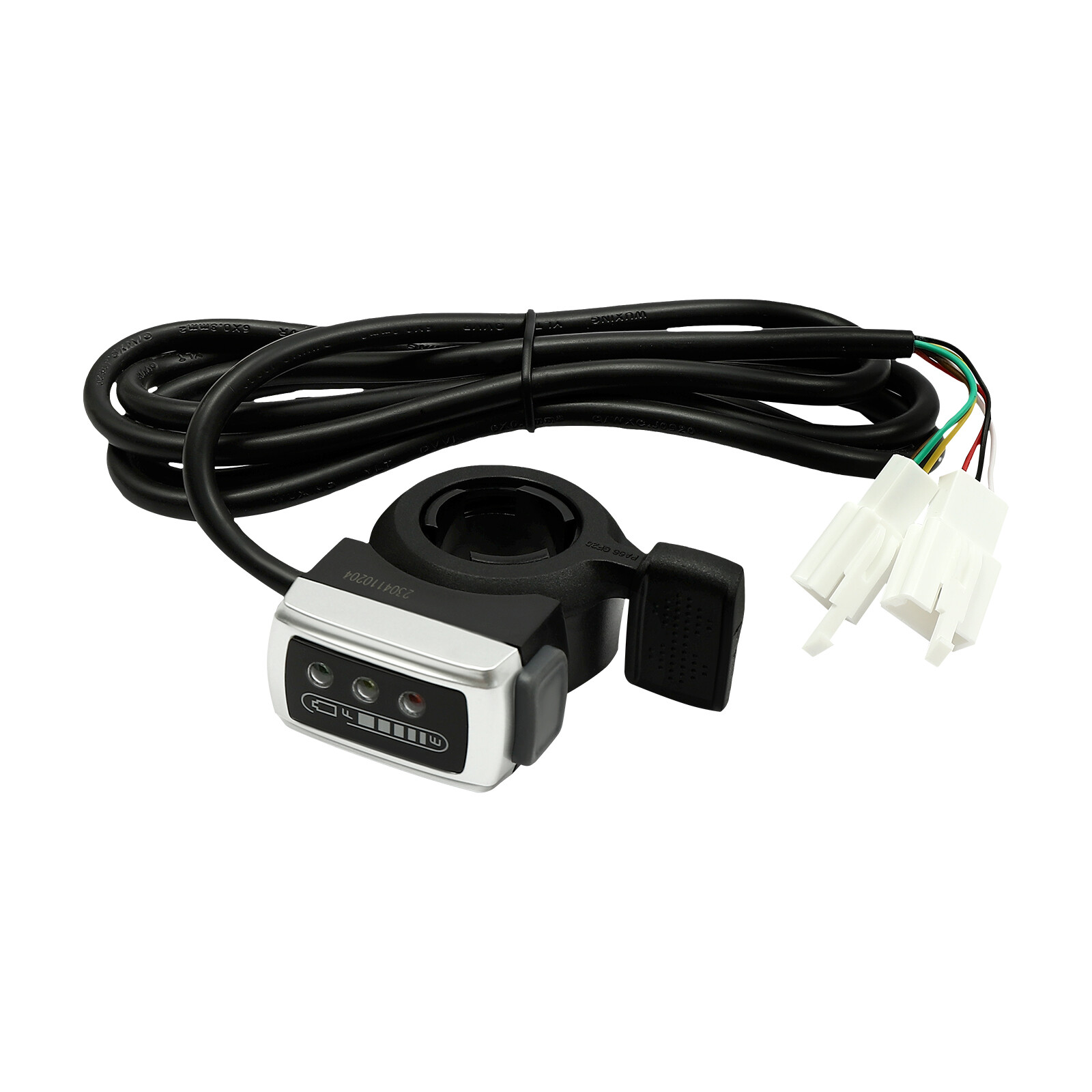

| Speed Gears | Three(80%,100%,110%) |
| Motor Efficiency | ≥78% |

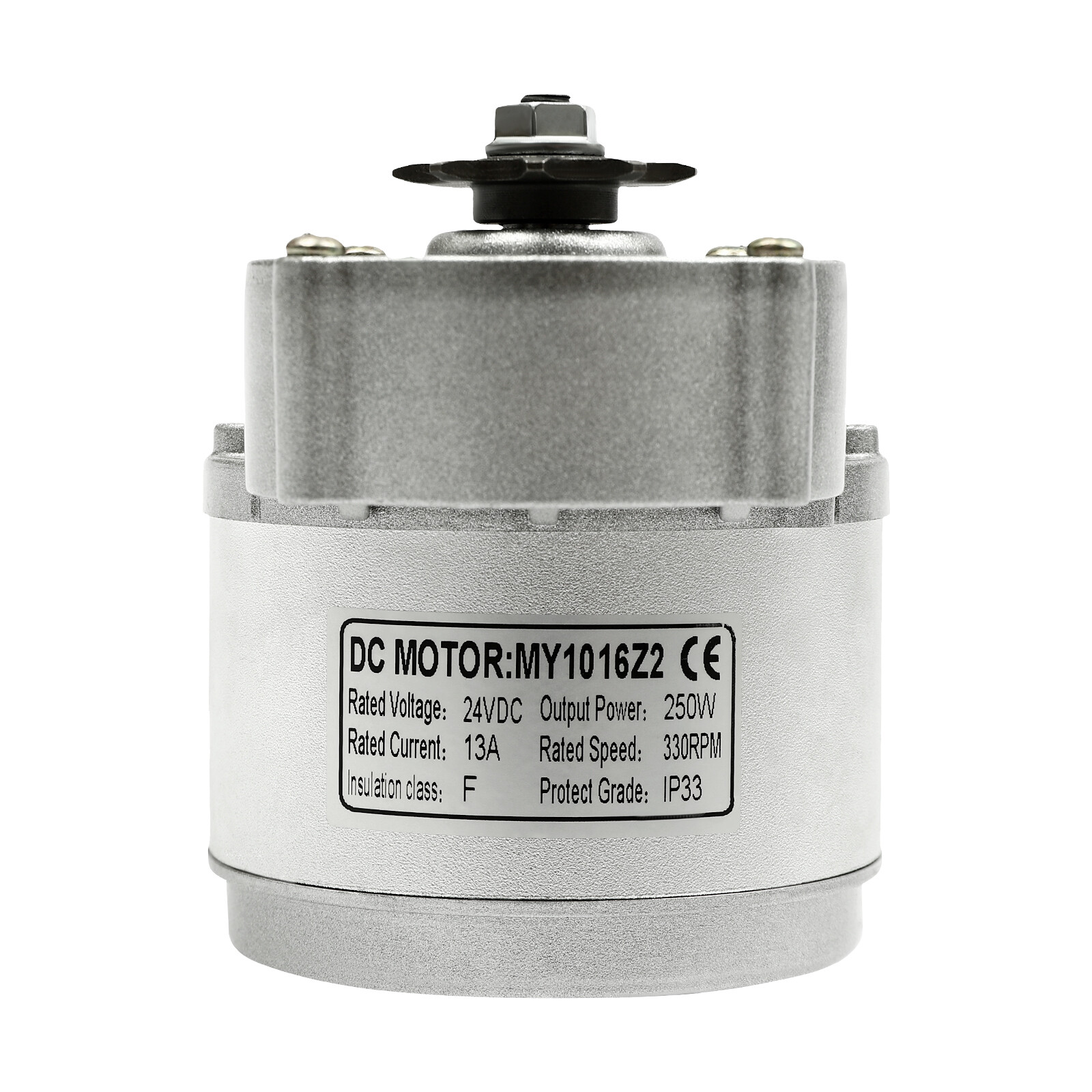

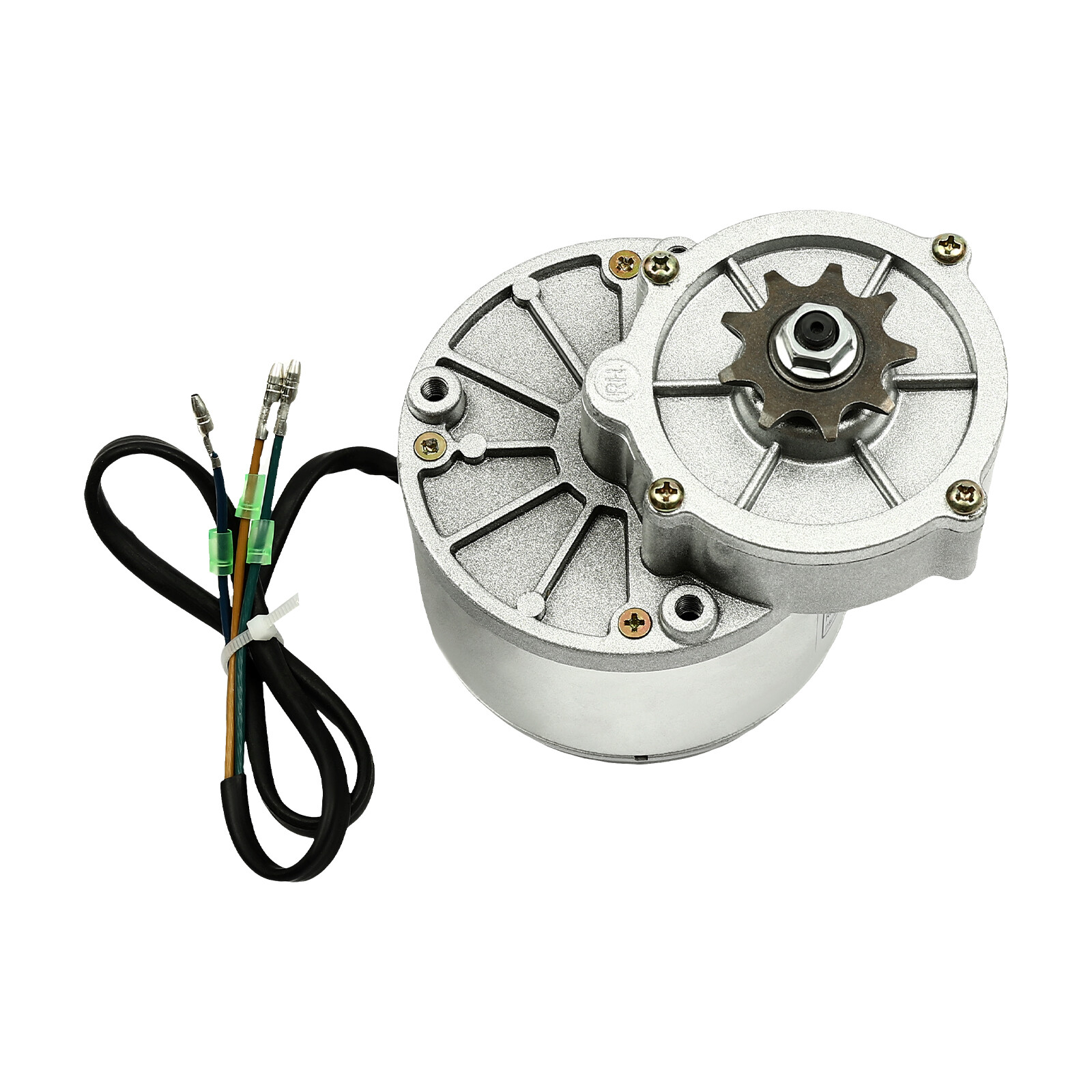

| Model | MY1016Z3 |
| Suspension Type | Rear |
| Torque | About 7.82N·m |
| Unload Current | ≤2.2A |
| Unloaded Speed | 3850Rpm |
| Rated Current | 13A |
| Rated Speed(Before Speed Reduction) | 3000RPM |
| Rated Speed(After Speed Reduction) | 330RPM |
| Gear Ratio | 9.78:1 |
| Protect Grade | IP33 |

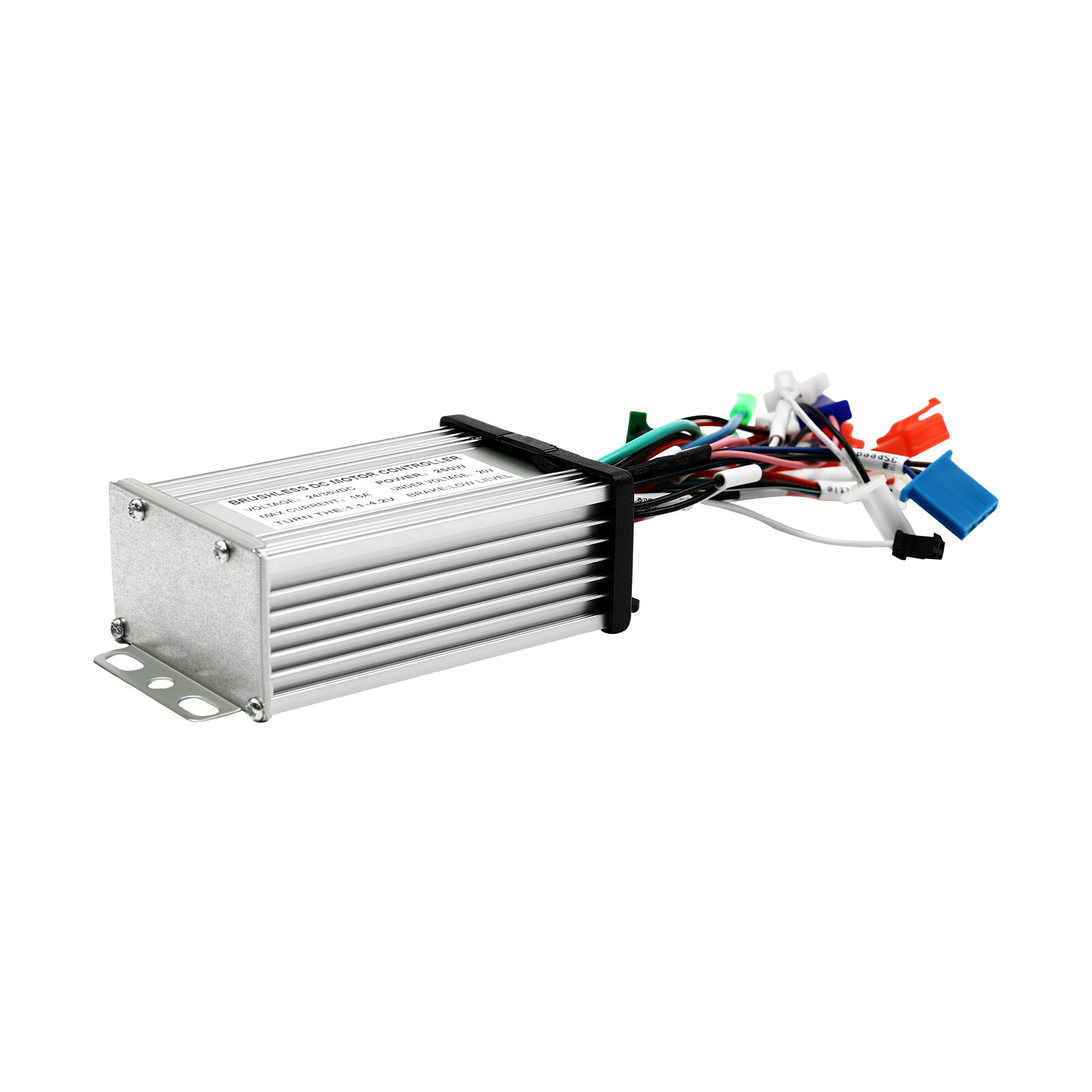

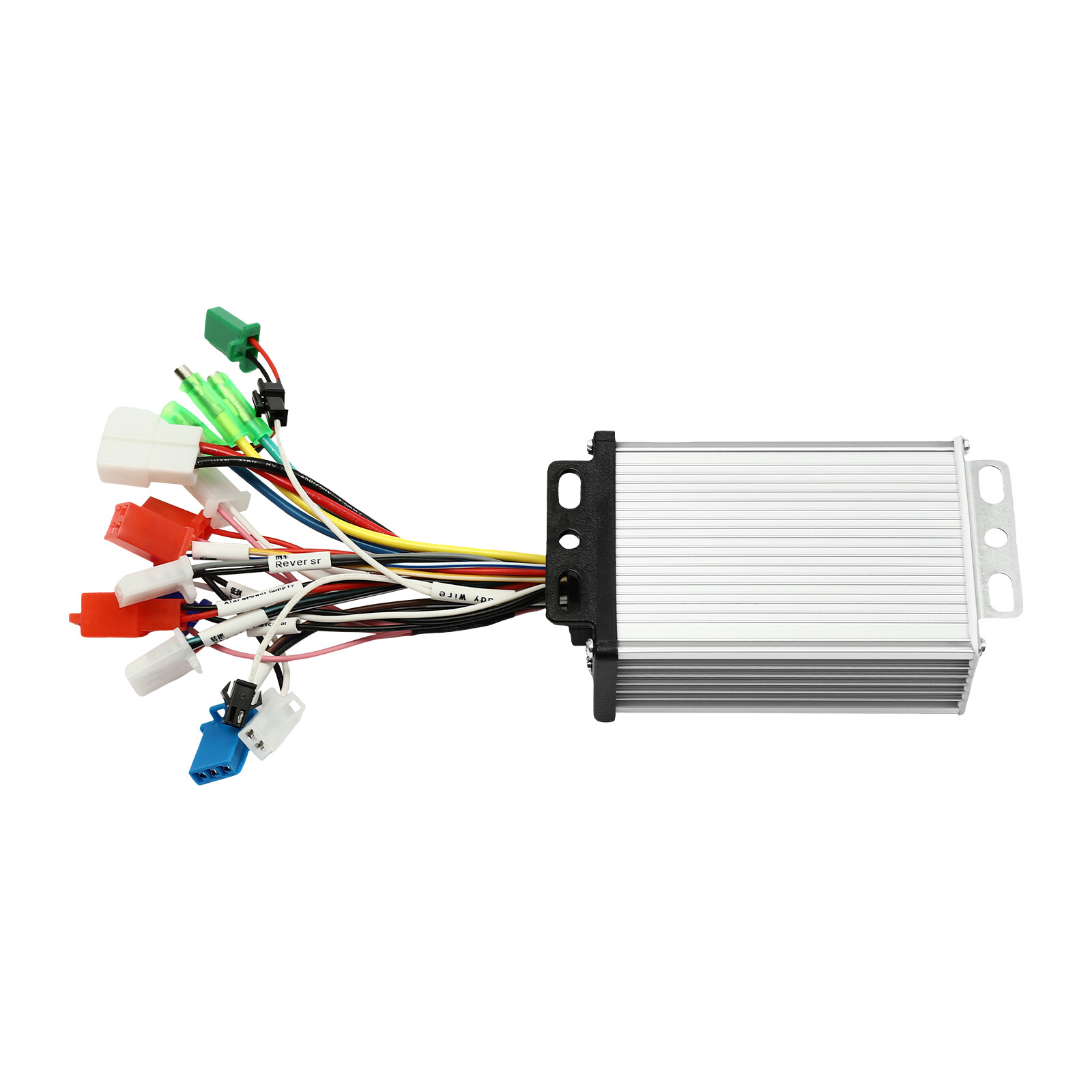

| Motor Controller Voltage | 24/36VDC |
| Motor Controller Max Current | 16A |
| Motor Controller Power | 350W |
| Under Voltage | 20V |
| Brake | Low Level |
| Suitable Bike Type | Spoke Wheel Bike |
| Suitable Bike Wheel Diameter | ＜68.58cm/27inch |
| Suitable Bicycle Hub Diameter | ＜35mm/1.3inch |
| Assembly Required | Yes |

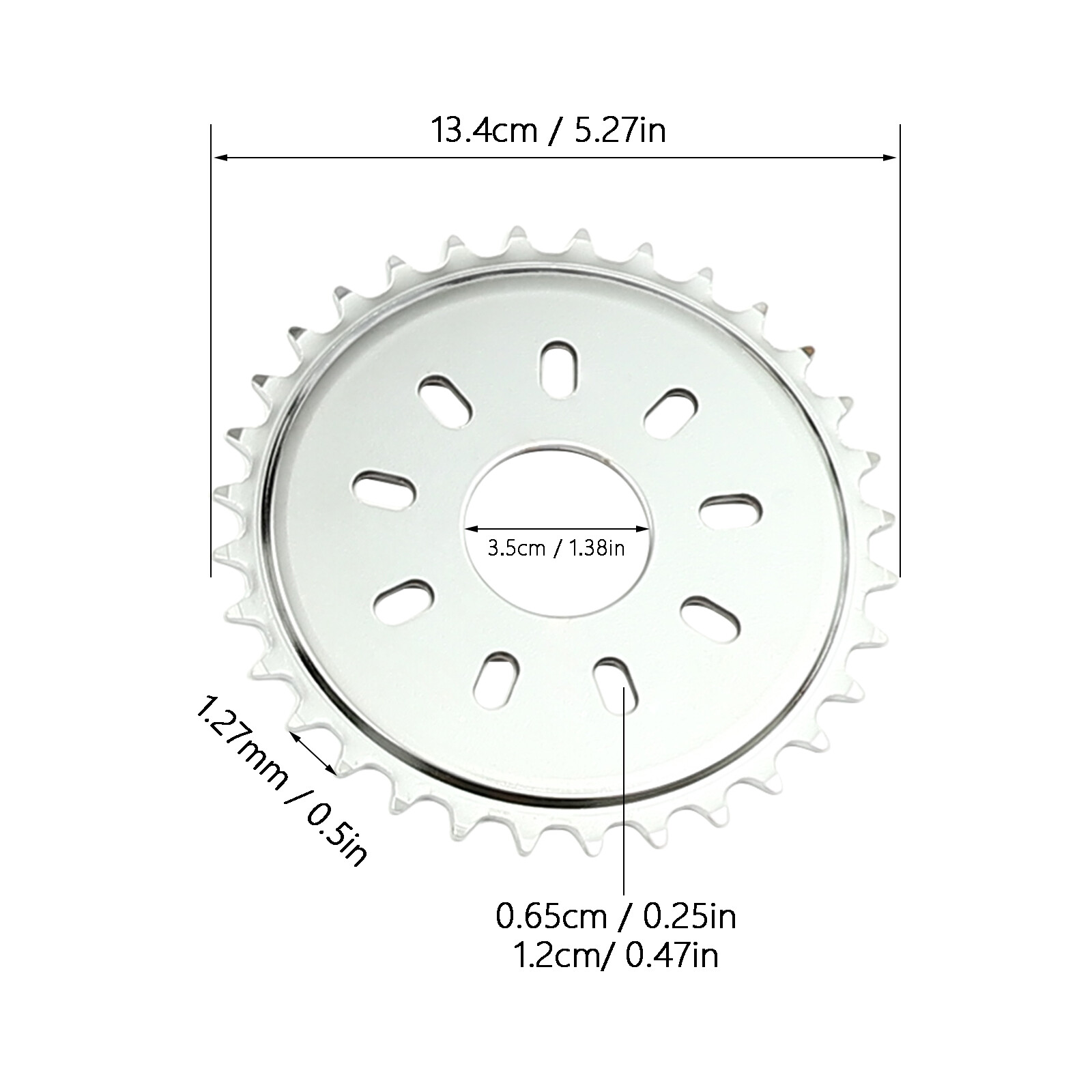

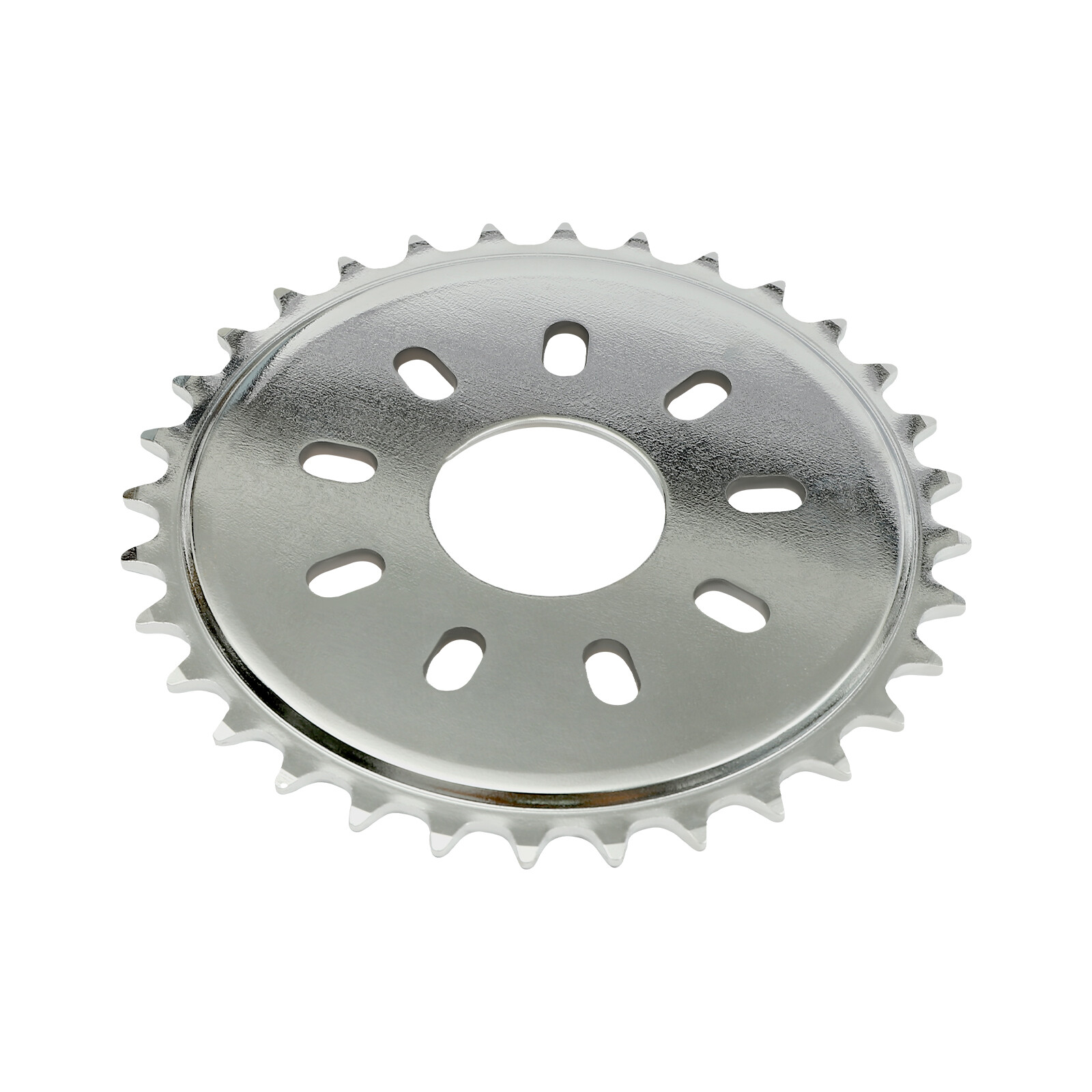

| Chainwheel Outer Diameter | 134mm/5.27inch |
| Chainwheel Inner Diameter | 35mm/1.38inch |
| Chainwheel Teeth Space | 12.7mm/0.5inch |
| Gross Weight | 4.5kg/9.92lbs |
Specifications Color: Silver, Black Material: Aluminum, Copper, Rare Earth Magnet Steel Speed Gears: Three(80%,100%,110%) Motor Efficiency: ≥78% Rated Voltage: 24V DC Power: 250W Temperature Resistance: 120℃/248℉ Model: MY1016Z3 Suspension Type: Rear Special Feature: Electric Torque: About 7.82N·m Unload Current: ≤2.2A Unloaded Speed: 3850Rpm Rated Current: 13A Rated Speed(Before Speed Reduction):3000RPM Rated Speed(After Speed Reduction): 330RPM Gear Ratio: 9.78:1 Insulation Class: F Protect Grade: IP33 Motor Controller Voltage: 24/36VDC Motor Controller Max Current: 16A Motor Controller Power: 350W Motor Controller Voltage: 1.1-4.2V Under Voltage: 20V Brake: Low Level Suitable Bike Type: Spoke Wheel Bike Suitable Bike Wheel Diameter: ＜68.58cm/27inch.
