16 inch 48V 60V Motorcycle Hub Motor Conversion Kit For Electric Bike 1000W Set
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | LUNYEE |
| Part Type | Motor |
| Voltage | 48 V |
| Compatible Bike Type | Universal |
| MPN | Does not apply |
| Country/Region Of Manufacture | China |
| Power | 500W 1000W |
| Shaft Diameter | 14mm |
| Tyre Model | 16*2.5, 16*3.0 |
| Wire Location | left |
| Brake Design | Disc brake |

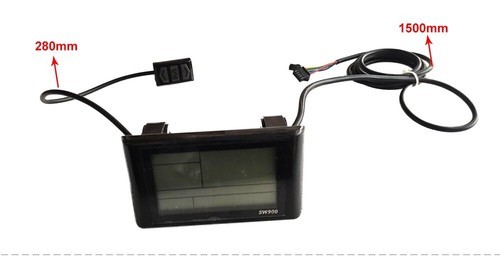

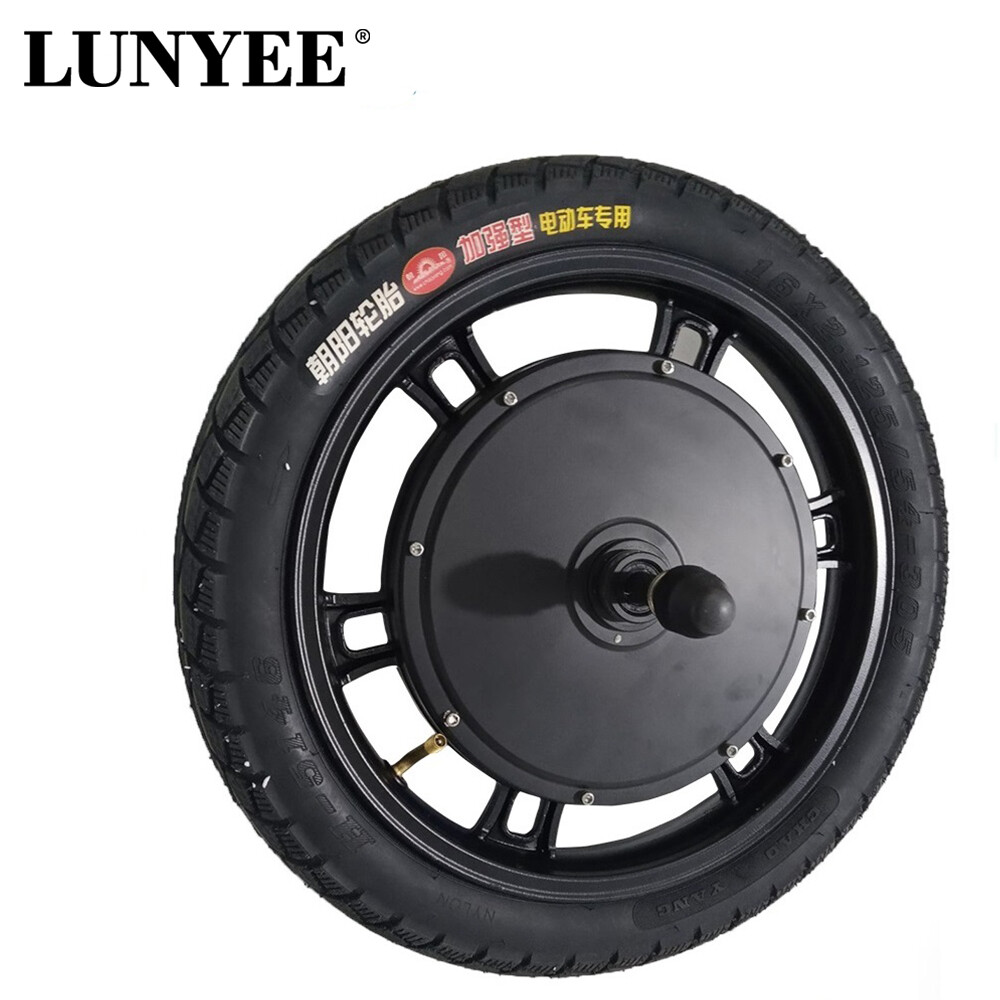

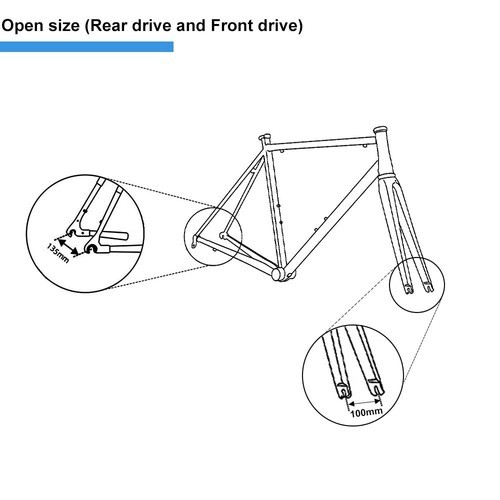

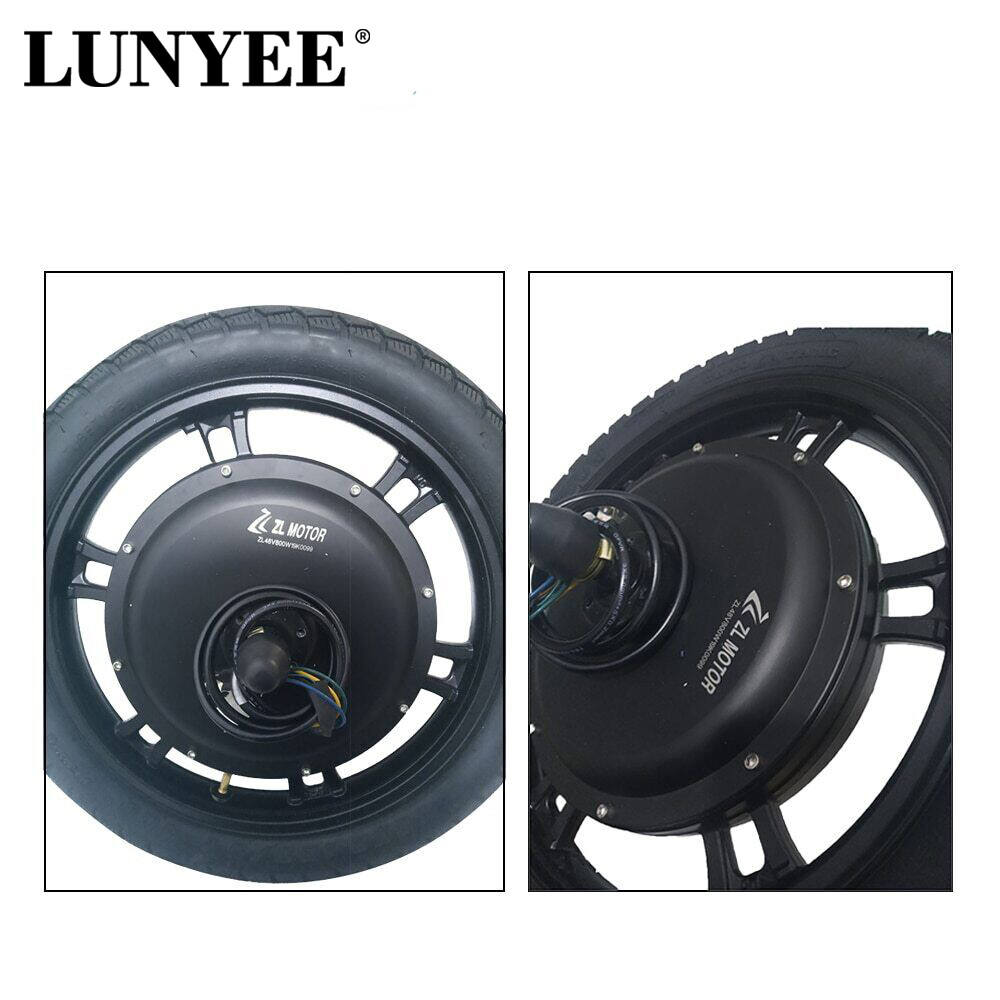

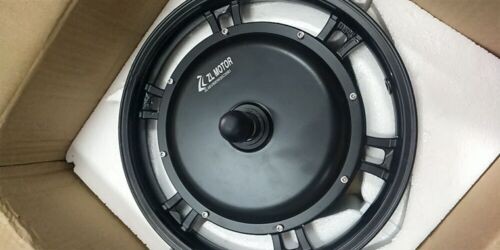

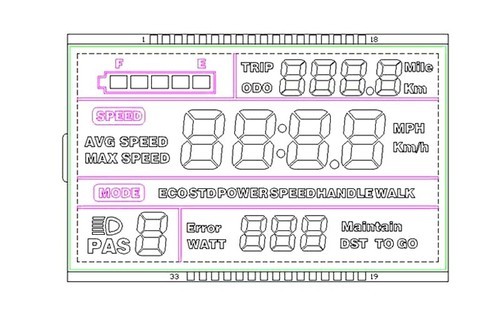

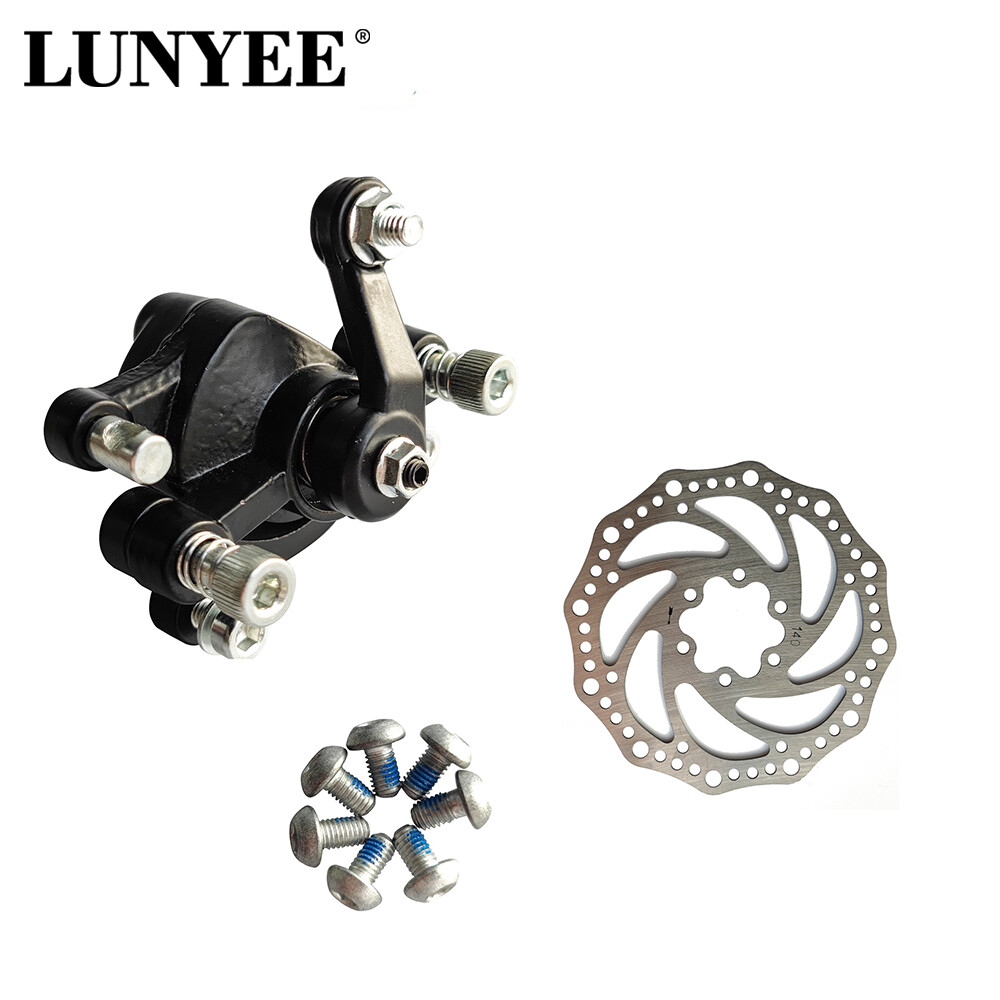

Description : Name Magnetic 16”BLDC gearless hub motor 23 Drive model Front Drive Rear Drive Open Size 100mm for front drive 135mm for rear drive Shaft diameter 14mm Rated voltage/ power/speed 48v 500w 42km/h (GPS speed) 48v 800w 50km/h 60v 1000w 55km/h Tyre model 16*2.5 16*3.0 Brake Design Disc brake Brake choice 6 screw standard bike disc brake Wire location left Low power design 48v 350w (kindly please ask service center) PACKING LIST： 1* 16 inch Hub Motor If you choose the Kit, the packing list: 1* 16 inch Hub Motor 1* matched Controller 1* SW900 LCD display 1* Thumb Throttle A pair of Brake Lever (all black color) 1 set Disc Brake 1* 7 speed Freewheel (Note: the front drive motor kit is can notthe freewheel, the rear drive kit can use it.) Note：Manufacturer product update, the latest motor cable is orange SW900 LCD display shows： sw900 LCD display setting: P01: backlight brightness, level 1 is the darkest, level 3 is the brightest; P02: mileage unit, 0: KM; 1: MILE; P03: Voltage level: 24V, 36V, 48V, default 36V; P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes; P05: Power-assisted gear: 0, 3 gear mode: 1 gear 2V, 2 gear, 3V, 3 gear, 4V; 1, 5 gear mode: 1 gear 2V, 2 gear, 2.5V, 3 gear, 3V, 4 files, 3.5V, 5 files, 4V; P06: Wheel diameter: unit, inch; accuracy: 0.1; P07: Number of speed magnets: Range: 1-100; P08: Speed limit: range 0-50km/h, 50 means unlimited speed, P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start; P10: Drive mode setting 0 : Power drive (the booster position determines how much power is output, and the switch is invalid). P11: Boost sensitivity setting Range: 1-24; P12: Boost start strength setting Range: 0-5; P13: Power magnetic steel disc type setting 5,8,12 magnetic steel three types P14: Controller current limit value setting Default 12A Range: 1-20A P15: The function has not been opened yet. P16: ODO clear setting Long press the up button for 5 seconds ODO clear Left thumb throttle (If you need other type throttle, feel free connect me.) Throttle lines: 1500mm Suitable for the disc brake: 140mm with 6 holes The 7 speed freewheel(Only can use for rear drive motor) PACKING :
